SG7805T-JAN Overview

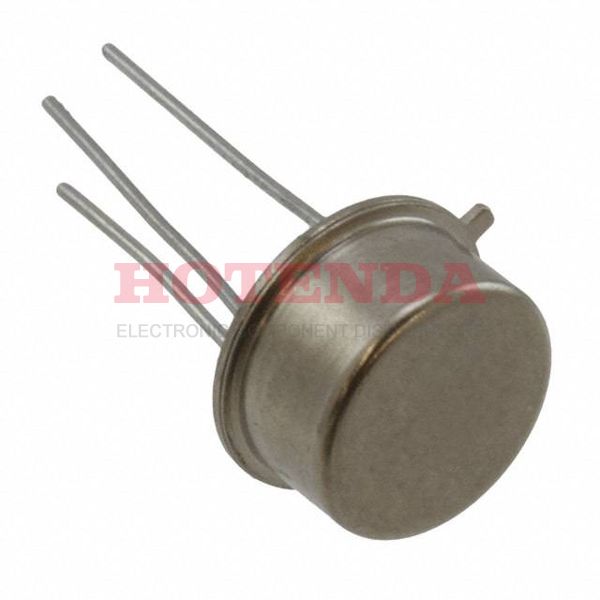

This Voltage Regulator IC comes inTray packaging. This battery regulator is contained in a TO-205AD, TO-39-3 Metal Can package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -55°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 500mA. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 3. FYI, the basic part number for this IC regulator is SG7805. This regulator IC is a typical PMIC - Power Management ICs. It operates in the 6mA Quiescent Current state. It is part of the Military, MIL-STD-883 Series. The regulator operates with a maximum operating temperature of 150°C. At the very least, the voltage regulator IC works with a -55°C operating temperature.
SG7805T-JAN Features
2V dropout voltage
PMIC - Power Management ICs subtageroy
The maximum operating temperature of -55°C
SG7805T-JAN Applications
There are a lot of Microchip Technology
SG7805T-JAN Linear Voltage Regulators applications.
- Home electric appliance
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
