LP2951CSD Overview

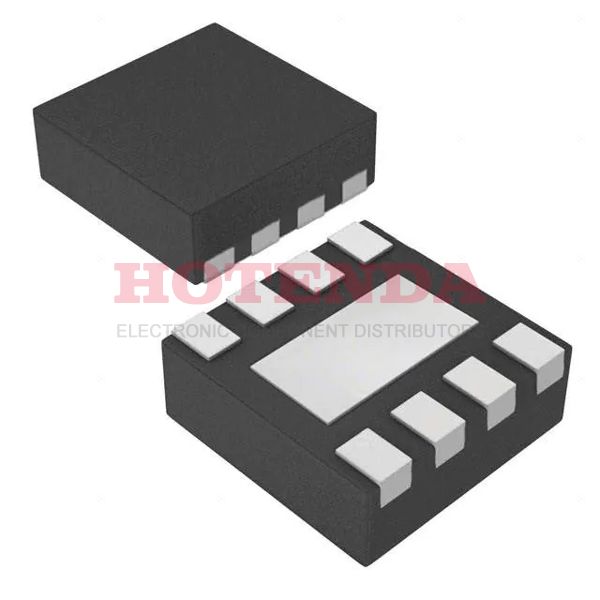

Deliveries are in Tape & Reel (TR) cases. The package is in a 8-WDFN Exposed Pad case. Basically, the voltage regulator chip is made up of 8 terminations. In this case, Adjustable (Fixed) represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C TJ degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 8. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 8-shaped. As an FYI, this IC voltage regulator has the basic part number LP2951. An example of this type of component would be a Other Regulators component. Packing the voltage regulator IC in this way is called TAPE AND REEL packing. The maximal output current reaches 100mA to meet the operating requirements. It operates in the 75μA Quiescent Current state. The top supply voltage can be set to 30V volts.
LP2951CSD Features
380mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
LP2951CSD Applications
There are a lot of Texas Instruments
LP2951CSD Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
