LMK03318RHST Overview
The Tape & Reel (TR) method is used for packaging clock ICs. The 48-WFQFN Exposed Pad package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. It contains a total of 48 terminations within RF synthesizer. The clock generator ic should be grounded with a voltage of 3.3V. It is designed that the Clock PLL's input should be LVCMOS. For full access to the electronic component's capabilities, 1 circuits are implemented. RF synthesizers based on this clock provide frequencies up to 1GHz maximum. This component can be conveniently installed on the panel thanks to the Surface Mount. Clock PLL is capable of receiving a maximum of 3.465V as a supply voltage. There are 3.15V~3.45V different supply voltages that can be provided for this RF synthesizer. Based on test statistics, ambient temperature should be set at -40°C~85°C. As the name suggests, this is a clock generator that is compatible with CML, HCSL, LVCMOS, LVDS, LVPECL logic levels. LMK03318 is the base part number for finding related electronic parts. There is a 48 pin that is available on the frequency synthesizers. A member of the PLLatinum? series, this electronic component is made of plastic. The output frequency is magnified as high as possible with 8 signal outputs. By searching for parts that belong to the LMK family, you can find electronic parts that are similar. Logic circuits containing this analog clock generator are commonly used in PLL BASED CLOCK DRIVER logic. When operated at 200MHz, frequency synthesizer achieves high efficiency.
LMK03318RHST Features

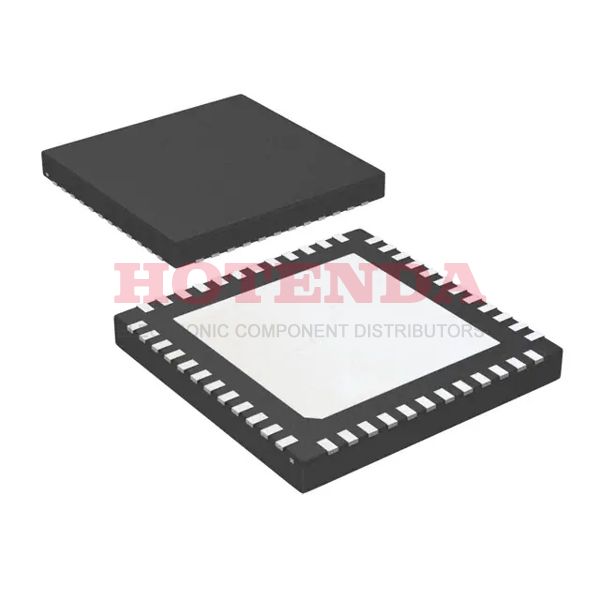

Available in the 48-WFQFN Exposed Pad
Supply voltage of 3.3V
LMK03318RHST Applications
There are a lot of Texas Instruments LMK03318RHST Clock Generators applications.
- Bluetooth transmitters
- Tracking filters
- Local oscillators (LOs)
- Fiber Channel
- Ports
- Cellular/4G
- Wireless infrastructure
- Phase modulation cellular systems
- Closed circuit systems
- Bluetooth receivers
