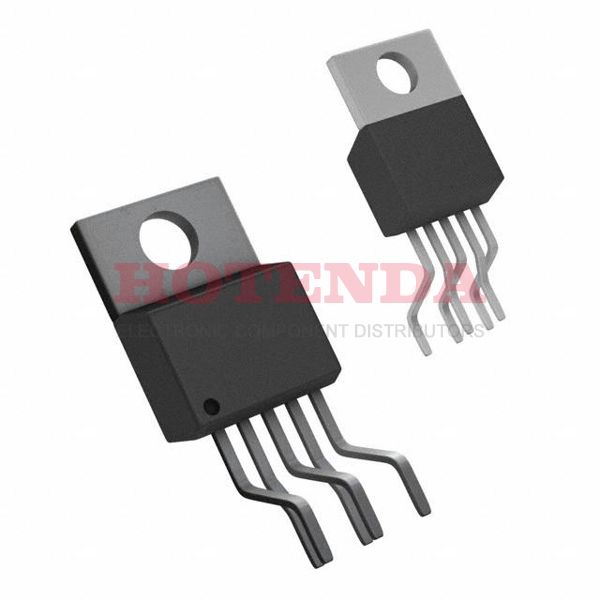

LM2941T/LB03 Overview
The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-5 Formed Leads case is used. On the Voltage regulator IC, there are 5 terminations that can be connected. This IC Regulator has a type of output called Adjustable. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 1A. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 5 pins may be available. For your information, part number LM2941 is the basic part number for this voltage regulator IC. It operates in the 15mA Quiescent Current state.
LM2941T/LB03 Features
500mV dropout voltage
LM2941T/LB03 Applications
There are a lot of Texas Instruments
LM2941T/LB03 Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
