L7806CT Overview

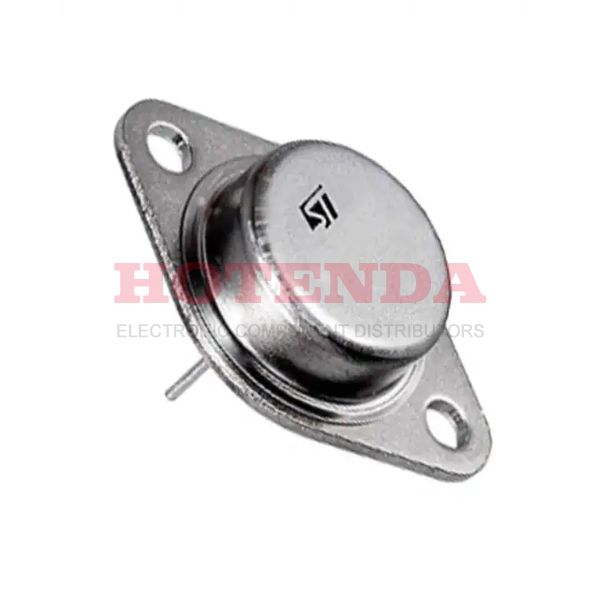

Deliveries are in Bulk cases. The package is in a TO-204AA, TO-3 case. Basically, the voltage regulator chip is made up of 3 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Through Hole operating temperatures. The Voltage Regulated IC operates at a temperature of 0°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 2. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 3-shaped. As an FYI, this IC voltage regulator has the basic part number L7806. The maximal output current reaches 1.5A to meet the operating requirements. It operates in the 8mA Quiescent Current state.
L7806CT Features
2V dropout voltage
L7806CT Applications
There are a lot of STMicroelectronics
L7806CT Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
