Name: LM2832XSD
Brand: Texas Instruments
SKU: LM2832XSD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount

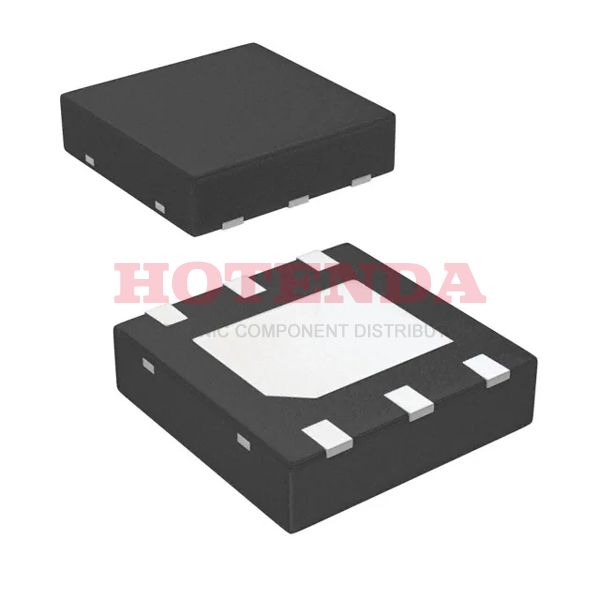

Package / Case	6-WDFN Exposed Pad
Number of Pins	6
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BICMOS
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.95mm
Base Part Number	LM2832
Function	Step-Down
Number of Outputs	1
Efficiency	93 %
Voltage - Input (Max)	5.5V
Output Voltage	4.5V
Output Type	Adjustable
Max Output Current	2A
Operating Supply Voltage	5.5V
Voltage - Input (Min)	3V
Input Voltage-Nom	5V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Voltage - Output (Min/Fixed)	0.6V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	1.6MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Height Seated (Max)	0.8mm
Length	3mm
Width	3mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

LM2832XSD Product Details

LM2832XSD Overview

optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. During the development of this harley voltage regulator, 6 terminations were made. There are two types of analog ICs in this voltage regulator 12v: SWITCHING REGULATOR ICs, which are the ones used in older voltage regulator 12vs. In order to save space, this harley voltage regulator is available in the 6-WDFN Exposed Pad package. 1 outputs of voltage regulator are configured. There are output pins on this DC DC switching regulator that generate Adjustable output. The voltage regulator 12v fits the Surface Mount mounting hole. Operating at -40°C~125°C TJ is the recommended temperature for adjusting voltage regulator's operation. The switching frequency of this DC-DC switching regulator reaches 1.6MHz. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 3V. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.6V. Voltage regulator has a maximum input voltage of 5.5V. This voltage regulator's peak reflow temperature is so high as to make it virtually indestructible. The voltage regulator 12v is designed to provide a nominal input voltage of 5V for operation. A voltage regulator 12v such as this falls under the Switching Regulator or Controllers category and belongs to this category. LM2832 is a family of voltage regulators that belong to the DC/DC industry. A voltage of 4.5V volts can be generated by DC DC switching regulator. In order to operate voltage regulator, there are 6 pins that must be connected. Voltage regulator's maximal output current reaches 2A A to meet the operation requirements. An input voltage of 5.5V is used to operate this harley voltage regulator.
