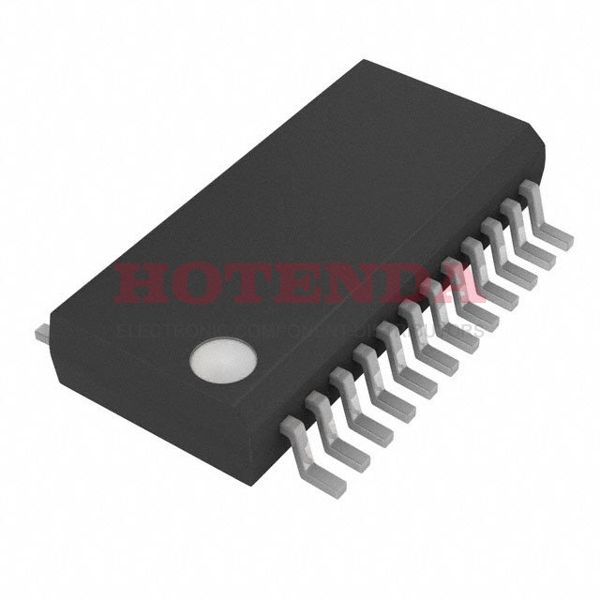

CDCF5801DBQG4 Overview
As a clock IC, it is packaged by the Tube method. This clock generator is embedded in the 24-SSOP (0.154, 3.90mm Width) package. When reflowed, this frequency generator can withstand a maximum temperature of 260. It contains 24 terminations that can be found in frequency synthesizer. This clock generator ic should receive a voltage of 3.3V. HSTL, LVPECL, LVTTL is designed for clock generator's input. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. Using this clock-based frequency synthesizer, you can achieve a maximum frequency of 280MHz. The Surface Mount allows the electrical component to be installed conveniently on the panel. This clock generator would require a maximum supply voltage of 3.6V. Keeping the supply voltage for this frequency synthesizer above 3V is recommended for safety reasons. There are 3V~3.6V different supply voltages that can be provided for this RF synthesizer. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. HSTL, LVDS, LVPECL, LVTTL, SSTL logic levels are supported by this RF synthesizer. This electronic component is usually classified as a PLL Multiplier/Divider component. The clock-generating IC is a 24-bit device designed specifically for microprocessors. You can find related electrical components to the base part number CDCF5801. A 24 pin is available on the PLL. Time clock generator is capable of handling a voltage of 3.3V. In general, this clock PLL is considered a Clock Drivers device. DIFFERENTIAL/SINGLE-ENDED OUTPUT AVAILABLE is included in this frequency generator to enhance clock signal output.
CDCF5801DBQG4 Features
Available in the 24-SSOP (0.154, 3.90mm Width)
Supply voltage of 3.3V
Operating supply voltage of 3.3V
