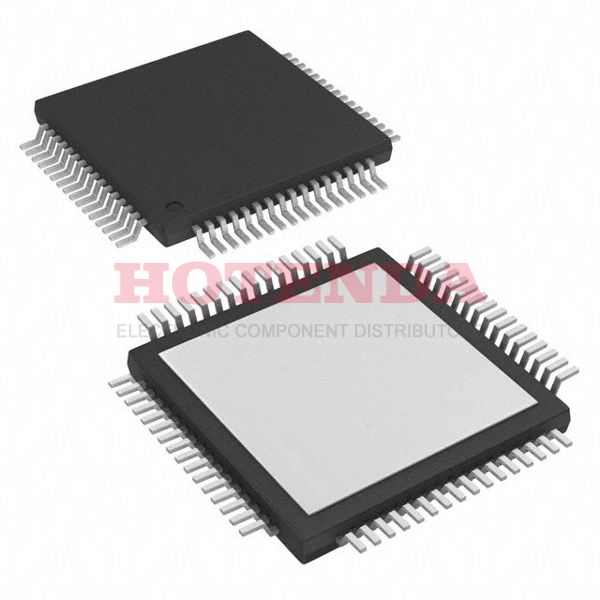

BQ76PL536TPAPTQ1 Overview
For the 64-PowerTQFP package, it is appropriate. The analog IC in this power management IC is POWER SUPPLY SUPPORT CIRCUIT. As of right 1w, there are 1 channels available. It comes in a case with a Tape & Reel (TR). There is a mounting point for this electronic component in the direction of Surface Mount. A Multi-Function Controller function can be delivered by battery instrument. Optimal performance of the electric part depends on operating temperature at -40°C~105°C TA. This electronic component uses Lithium-Ion battery chemistry. 20V volts power it. Ensure that this battery management IC is always set to 20V. This is a family based on BQ76PL536. As soon as Vsup reaches 27V, the maximal supply voltage is reached. Ensure that Vsup (the supply voltage) is greater than 7.2V volts. There must be 15mA more than 15mA current available from the supply (Isup). A battery protection IC's series is represented by Automotive, AEC-Q100.
BQ76PL536TPAPTQ1 Features
Available in 64-PowerTQFP Package
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 20V
Supply Voltage-Max (Vsup) : 27V
BQ76PL536TPAPTQ1 Applications
There are a lot of Texas Instruments
BQ76PL536TPAPTQ1 Battery Management ICs applications.
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
