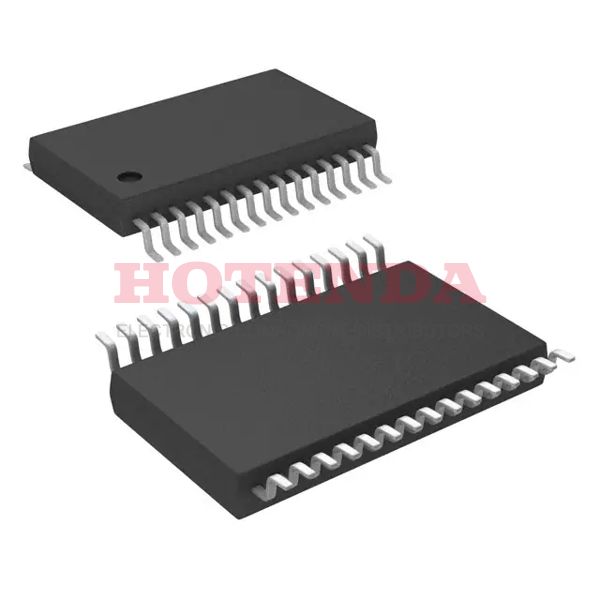

BQ29330DBTRG4 Overview
It belongs to package 30-TFSOP (0.173, 4.40mm Width). This system battery uses an analog integrated circuit (IC) called POWER SUPPLY MANAGEMENT CIRCUIT. Channels available are 5. Total pins are 30. There is a Tape & Reel (TR) case packaging. A voltage of at least 4.5V volts is required on this electric component. There is a space in between this electrical part and Surface Mount. In order for this power management IC to function correctly, the supplied voltage can't exceed 25V volts. There is a possibility of delivering functions Battery Protection. To best deliver its performance, the electronic part should be operated at a temperature of -40°C~110°C TA. In this electrical part, the battery chemistry includes Lithium Ion/Polymer. It is imperative to keep this transceiver ic set to 14V at all times. BQ29330 is the family underlying it. It can only supply 50mA current.
BQ29330DBTRG4 Features
Available in 30-TFSOP (0.173, 4.40mm Width) Package
with 30 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 14V
Output Voltage at the range of 25V
BQ29330DBTRG4 Applications
There are a lot of Texas Instruments
BQ29330DBTRG4 Battery Management ICs applications.
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
- Electric street sweepers
- Shuttle robots
