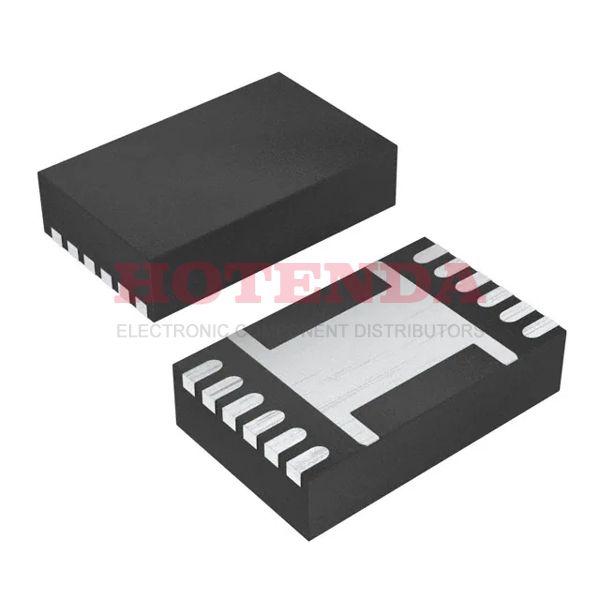

BQ28550DRZR Overview
The 12-VFDFN Exposed Pad package is appropriate for it. This power IC uses an analog IC called POWER SUPPLY SUPPORT CIRCUIT. Channels are available on 1. There are 12 pins on it. The smart tools battery is packaged in a Tape & Reel (TR) case. Surface Mount is mounted in the way of this electronic component. The Multi-Function Controller functions can be delivered by it. A temperature range of -40°C~85°C TA is optimal for the electric part to deliver its performance. This electronic component includes Lithium-Ion in its battery chemistry. This battery management IC should always be set to 3.6V. Based on the BQ28550 family. 5.5V is the maximum supply voltage (Vsup). A voltage greater than 2.45V is required for Vsup (supply voltage). The operating supply voltage for this power management IC is specified as 3.6V.
BQ28550DRZR Features
Available in 12-VFDFN Exposed Pad Package
with 12 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 3.6V
Supply Voltage-Max (Vsup) : 5.5V
Output Voltage at the range of 2.5V
BQ28550DRZR Applications
There are a lot of Texas Instruments
BQ28550DRZR Battery Management ICs applications.
- Electric cars
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
