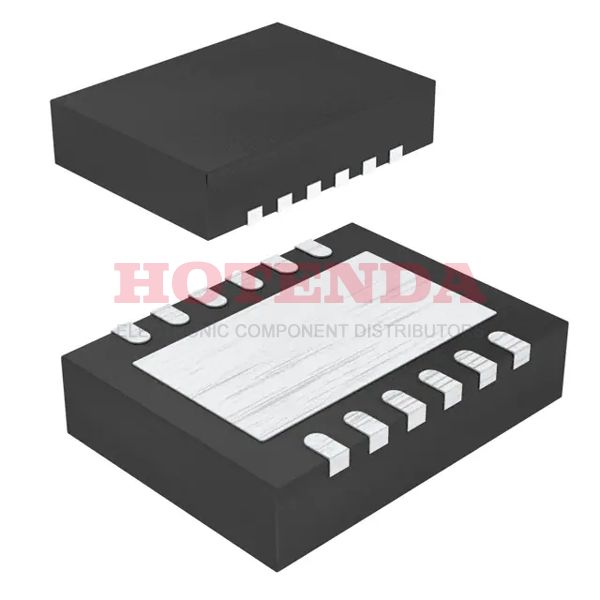

BQ24314DSJT Overview
It is appropriate for the 12-VFDFN Exposed Pad package. POWER SUPPLY SUPPORT CIRCUIT is the analog IC that this power IC employs. There are 1 channels available. It has a total of 12 pins. It's packaged in a Tape & Reel (TR) case. This electrical part's minimum supply voltage should not be less than 3.3V volts. This electronic component is mounted in the way of Surface Mount. This power IC's supplied voltage should not exceed 26V volts. It is able to deliver the Battery Protection functions. It is best for the electric part to operate temperature at the range of 0°C~125°C TJ to deliver its performance. The battery chemistry of this electronic component includes Lithium-Ion. It is powered by a 3/24V volts. Keep in mind that this battery management IC should be set to 5V at all times. It is based on BQ24314 family. When using this device, RESET THRESHOLD VOLTAGE IS 5.85V can be discovered in the power management IC. The maximum supply current (Isup) must not exceed 0.6mA. The maximum current that can be supplied to the battery management IC is 1.5A.
BQ24314DSJT Features
Available in 12-VFDFN Exposed Pad Package
with 12 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 5V
Output Voltage at the range of 4.35V
BQ24314DSJT Applications
There are a lot of Texas Instruments
BQ24314DSJT Battery Management ICs applications.
- Electric vehicles
- Electric cars
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
