3656KG Overview

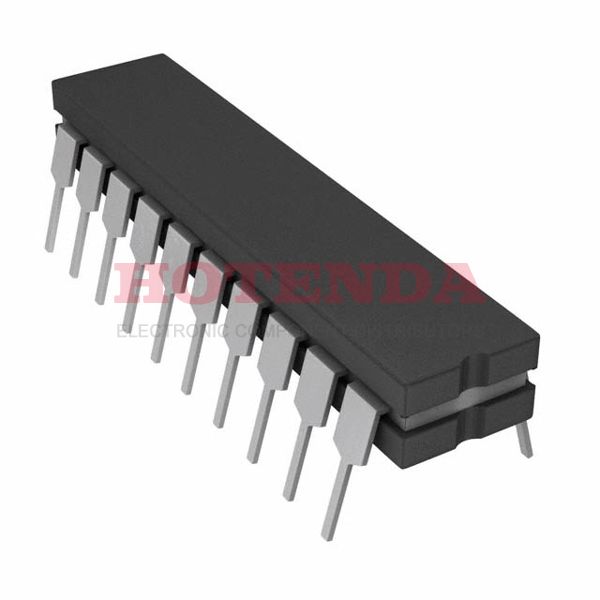

There is a 20-CDIP (0.900, 22.86mm) case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Isolation-types. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 20 mark. The total number of pins on linear amplifier is 20. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. 20 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 1mV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of 0°C~70°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 14mA . A linear amplifier like this has 1 circuits on it. The operating supply voltage of the buffer op amp is rated at 15V.
3656KG Features
20 Pins
supply voltage of 15V
3656KG Applications
There are a lot of Texas Instruments
3656KG Instrumentational OP Amps applications.
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
