3656BG Overview

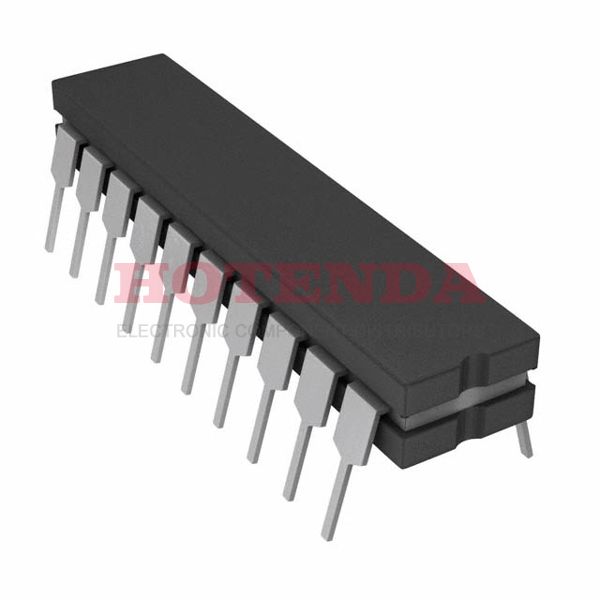

It is packaged in an 20-CDIP (0.900, 22.86mm)-case that protects the operational amplifiers from damage. An op amp of this type is a Isolation-type. As far as the packaging is concerned, buffer op amp is delivered in a Tube case. It is estimated that there will be at least 20 terminations this year. A total of 20 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 15V battery and that the battery should be inserted in the amplifier. In total, the buffer amplifier consists of 20 pins. Op amp ic rates 1mV for input offset voltage. This electronic part is recommended for mounting type Through Hole. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of -25°C~85°C. A supply current of 14mA can be used to operate this linear amplifier. This op amp ic has 1 circuits. The operating supply voltage of the buffer op amp is rated at 15V.
3656BG Features
20 Pins
supply voltage of 15V
3656BG Applications
There are a lot of Texas Instruments
3656BG Instrumentational OP Amps applications.
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
