Name: 770966-1
Brand: TE Connectivity AMP Connectors
SKU: 770966-1
Price: 2.30000 USD
Availability: InStock

new-10%

770966-1

Manufacturer part number:770966-1

Manufacturer:TE Connectivity AMP Connectors

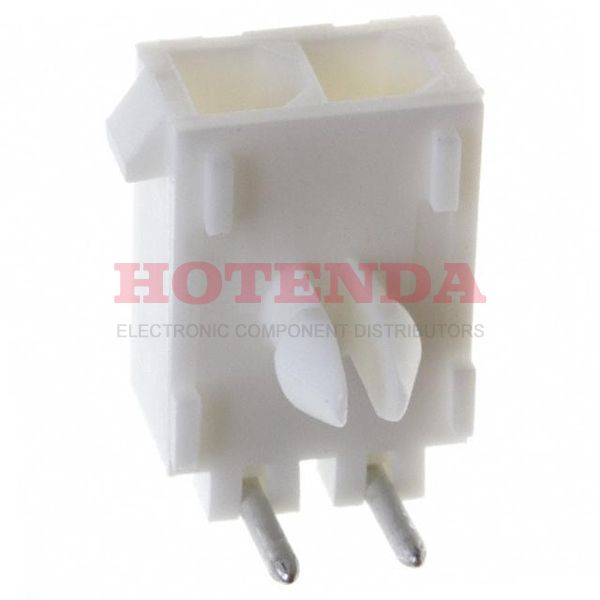

Description:Mini-Universal MATE-N-LOK Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin-Lead Polyamide (PA), Nylon Board to Cable/Wire 0.225 5.72mm Height

Case Package:SOT-23

Datasheet:770966-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	10 Weeks
Contact Material	Brass
Contact Plating	Lead, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Circular
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
PCB Mounting Orientation	Right Angle
Operating Temperature	-20°C~85°C
Packaging	Bulk
Series	Mini-Universal MATE-N-LOK
Published	2005
Feature	Board Lock
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Applications	General Purpose
Number of Rows	1
Voltage - Rated	600VAC
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin-Lead
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Orientation	Right Angle
Depth	12.7mm
Insulation Height	0.225 5.72mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	9.5A
Pitch - Mating	0.163 4.14mm
Insulation Color	White
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Approval Agency	CSA
Contact Length - Post	0.145 3.68mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	1
Number of Contacts	2
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
Empty Shell	NO
Operating Supply Voltage	600V
ELV	Non-Compliant
Max Voltage Rating (AC)	600V
Withdrawl Force-Min	.695 N
Sealable	No
Contact Current Rating	9.5A
Circuit Application	Power
Number of Signal Positions	0
Contact Retention	Without
VDE Tested	Yes
Height	12.7mm
Length	9.86mm
Width	5.72mm
Plating Thickness	150μm
Contact Finish Thickness - Mating	150.0μin 3.81μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

770966-1 Product Details

770966-1 Overview

The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Mini-Universal MATE-N-LOK Series.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Lock feature.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -20°C~85°C.
