Name: 95278-402-24LF
Brand: Amphenol ICC (FCI)
SKU: 95278-402-24LF
Price: 1.67000 USD
Availability: InStock

new-10%

95278-402-24LF

Manufacturer part number:95278-402-24LF

Manufacturer:Amphenol ICC (FCI)

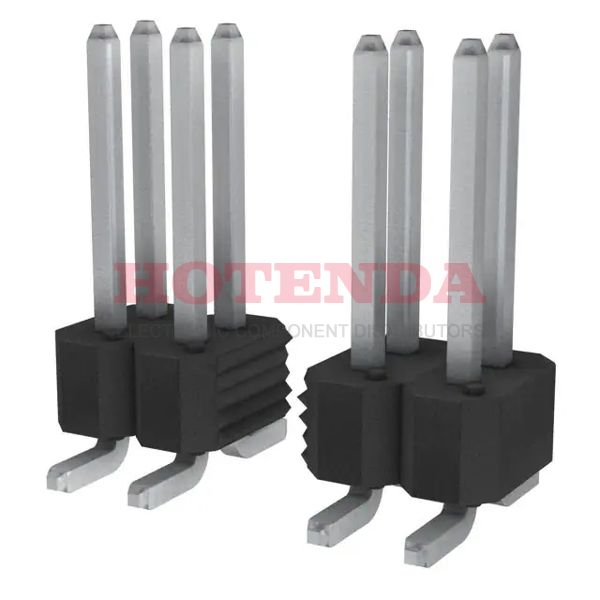

Description:BERGSTIK® Series 2-Row Header, Breakaway Solder Phosphor Bronze Bulk Surface Mount Tin Thermoplastic 24-Position Board to Board 0.100 2.54mm Height

Case Package:SOT-23

Datasheet:95278-402-24LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Thermoplastic
Packaging	Bulk
Series	BERGSTIK®
Published	2016
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	24
Max Operating Temperature	125°C
Min Operating Temperature	-65°C
Color	Black
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Pitch	2.54mm
Orientation	Straight
Depth	4.83mm
Insulation Height	0.100 2.54mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Number of Contacts	24
Contact Finish - Post	Tin
Contact Length - Mating	0.315 8.00mm
Housing Color	Black
Max Voltage Rating (AC)	1.5kV
Length	30.48mm
Contact Finish Thickness - Mating	78.7μin 2.00μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

95278-402-24LF Product Details

95278-402-24LF Overview

Packaging is Header, Breakaway.Surface Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the BERGSTIK® Series, it can be found in this category.Temperatures below 125°C are best for using it.There's a minimum temperature of -65°C for this device.In this case, Surface Mount mounts the part.
