Name: 767057-7
Brand: TE Connectivity AMP Connectors
SKU: 767057-7
Price: 143.79000 USD
Availability: InStock

new

767057-7

Manufacturer part number:767057-7

Manufacturer:TE Connectivity AMP Connectors

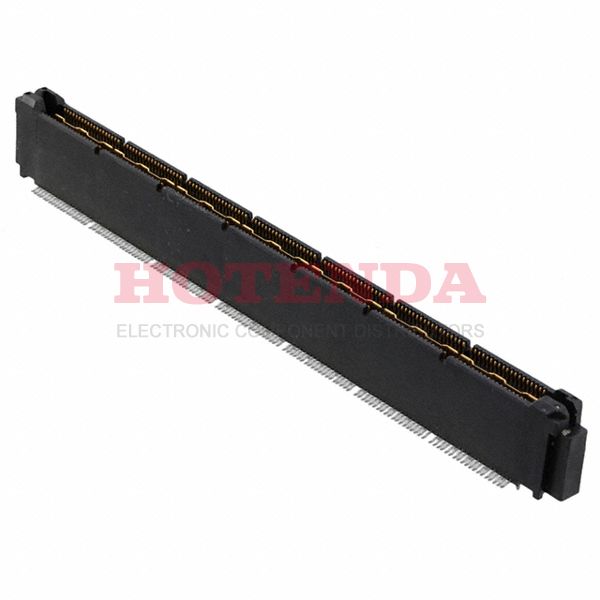

Description:Plug, Outer Shroud ContactsTube2 Rows0.025 0.64mmSurface Mount266 PositionsMICTORPalladium-NickelSolder

Case Package:SOT-23

Datasheet:767057-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	25 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Plating	Gold, Nickel
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
PCB Mount Alignment	With
Packaging	Tube
Published	2006
Series	MICTOR
Feature	Board Guide, Ground Bus (Plane)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	266
Color	Black
Number of Rows	2
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.025 0.64mm
Total Number of Contacts	266
Orientation	Vertical
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Palladium-Nickel
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	MALE
Operating Temperature (Min)	-55°C
Body Depth	0.484 inch
Operating Supply Voltage	30V
Rated Current (Signal)	1A
Contact Style	BELLOWED TYPE
Contact Resistance	10mOhm
Insulation Resistance	2MOhm
Row Spacing	5.79 mm
ELV	Compliant
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
Durability	500 Cycles
Contact Pattern	RECTANGULAR
Withdrawl Force-Min	.139 N
Sealable	No
Circuit Application	Signal
Mating Alignment	Without
Length	101.6mm
Width	5.2832mm
Contact Finish Thickness	5.00μin 0.127μm
Plating Thickness	5μin
Contact Finish Thickness - Mating	120 nm
Height Above Board	0.484 12.29mm
Stack Height (Mating)	12.57mm 21.6mm
PCB Thickness	1.57mm
Stack Height	12.57mm
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0

767057-7 Product Details

767057-7 Overview

Packaging is in the form of Plug, Outer Shroud Contacts.An orange Tube case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the MICTOR Series.In operation, Board Guide, Ground Bus (Plane) can be maintained as long as Board Guide, Ground Bus (Plane) is unchanged.A Surface Mount socket is required for the mounting of this part.This device can be used with a 30V supply, as it is designed for that operation.
