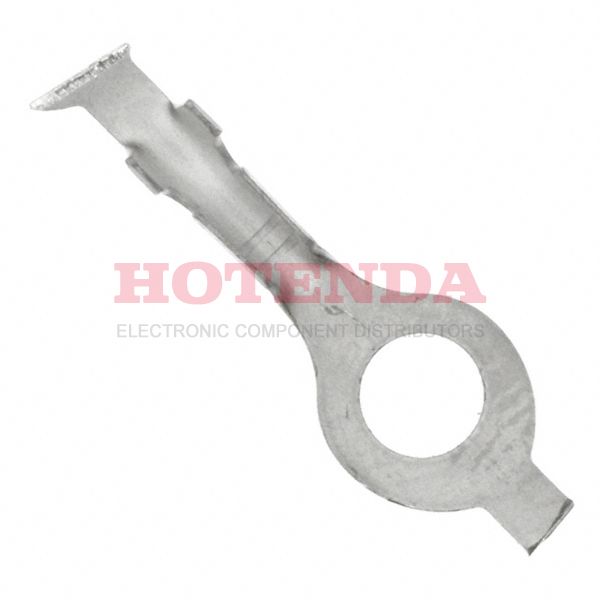

60553-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 5 days ago)
Factory Lead Time
5 Weeks
Contact Material
Brass
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Underplate Material
Nickel
Packaging
Cut Tape (CT)
Published
2004
Feature
Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Color
Red
Gender
Female
HTS Code
8536.90.40.00
Orientation
Straight
Depth
6.35mm
Contact Finish
Tin
Wire Gauge
20-24 AWG
ELV
Compliant
Wire Gauge (Max)
20 AWG
Wire Gauge (Min)
24 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.048 ~ 0.078 (1.22mm ~ 1.98mm)
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
0.6 mm2
Stud/Tab Size
6 Stud
Insulated Wire Support
Yes
Heavy Duty
No
Stud Diameter
3.68 mm
Number of Holes
1
Stud Size
M3.5
Length
14.99mm
Thickness
0.014 0.36mm
Length - Overall
0.590 14.99mm
Diameter - Inside
889 μm
Width - Outer Edges
0.250 6.35mm
Material Thickness
355.6μm
Tongue Thickness
360μm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:30250 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
60553-1 Product Details
Description: The TE Connectivity / AMP Terminals 60553-1 Ring Connectors are a type of electrical connector designed for use in a variety of applications. The connectors feature a circular design with a crimp connection for 20-24 AWG #6 wire. The connectors are made from a durable plastic material and are designed to provide a secure connection.
Features: - Circular design with crimp connection for 20-24 AWG #6 wire - Durable plastic construction - Secure connection - Easy to install
Applications: The TE Connectivity / AMP Terminals 60553-1 Ring Connectors are suitable for a variety of applications, including automotive, industrial, and consumer electronics. The connectors can be used to connect wires in a variety of applications, such as automotive wiring, industrial control systems, and consumer electronics.
