PN10-56RX-L datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PN10-56RX-L Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Polyamide (PA), Nylon
Packaging
Bulk
Series
Pan-Term®
Published
2011
Feature
Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Yellow
HTS Code
8536.90.40.00
Depth
13.21mm
Wire Gauge
10-12 AWG
Wire Gauge (Max)
12 AWG
Wire Gauge (Min)
10 AWG
Wire/Cable Gauge
10 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.265 (6.73mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
5/16 Stud
Terminal Gender
FEMALE
Length
32.258mm
Width
13.2mm
Thickness
0.040 1.02mm
Length - Overall
1.270 32.26mm
Width - Outer Edges
0.520 13.21mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:3045 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.86000
$1.86
10
$1.81100
$18.11
25
$1.76400
$44.1
50
$1.71780
$85.89
100
$1.67130
$167.13
500
$1.62488
$812.44
PN10-56RX-L Product Details

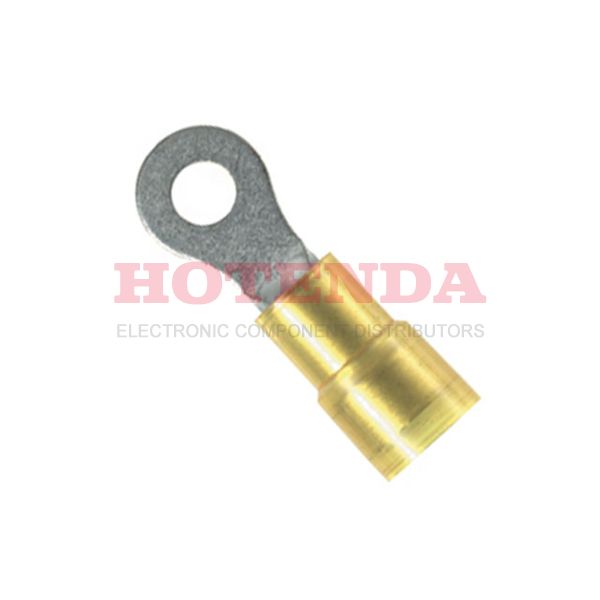

Description: Panduit PN10-56RX-L Ring Tongue Terminals are designed for use with 10-12AWG wire and feature a 32.26mm x 13.21mm tin plated copper construction. These terminals are designed to provide a secure connection for a variety of applications.
Features: - Tin plated copper construction for superior corrosion resistance - Designed for use with 10-12AWG wire - 32.26mm x 13.21mm size - Provides a secure connection
Applications: Panduit PN10-56RX-L Ring Tongue Terminals are suitable for a variety of applications, including automotive, marine, and industrial wiring. They are ideal for use in applications where a secure connection is required.
