Name: 5-532955-9
Brand: TE Connectivity AMP Connectors
SKU: 5-532955-9
Price: 11.42000 USD
Availability: InStock

new

5-532955-9

Manufacturer part number:5-532955-9

Manufacturer:TE Connectivity AMP Connectors

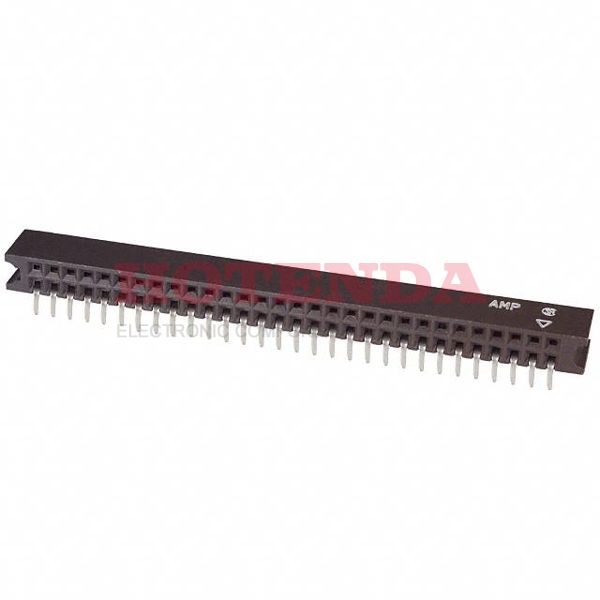

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold 60 Positions Female Socket

Case Package:SOT-23

Datasheet:5-532955-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Phosphor Bronze
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Housing Material	Thermoplastic
PCB Mounting Orientation	Right Angle
PCB Mount Alignment	Without
Packaging	Tube
Published	2007
Series	AMPMODU Mod II
Feature	Guide Pin Ears
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	60
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Number of Rows	2
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	8.13mm
Insulation Height	0.238 6.05mm
Style	Board to Board
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Voltage - Rated AC	250V
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.115 2.92mm
Contact Finish - Post	Tin
Contact Gender	Female
UL Flammability Code	94V-0
Lead Length	2.92mm
Operating Supply Voltage	250V
Contact Resistance	12mOhm
Insulation Resistance	1GOhm
ELV	Compliant
Max Voltage Rating (AC)	250V
Contact Current Rating	3A
Circuit Application	Signal
Mating Alignment	With
High Temperature Compatible	Yes
Height	8.13mm
Length	82.75mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	50.0μin 1.27μm
Length - Tail	2.921mm
PCB Thickness	1.57mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5-532955-9 Product Details

5-532955-9 Overview

The product comes in a package of Receptacle.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the AMPMODU Mod II Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.It is more powerful in many ways due to its Guide Pin Ears feature.It is mounted by Through Hole.Its operating supply voltage is 250V.
