Name: 4-794630-6
Brand: TE Connectivity AMP Connectors
SKU: 4-794630-6
Price: 2.33000 USD
Availability: InStock

new-10%

4-794630-6

Manufacturer part number:4-794630-6

Manufacturer:TE Connectivity AMP Connectors

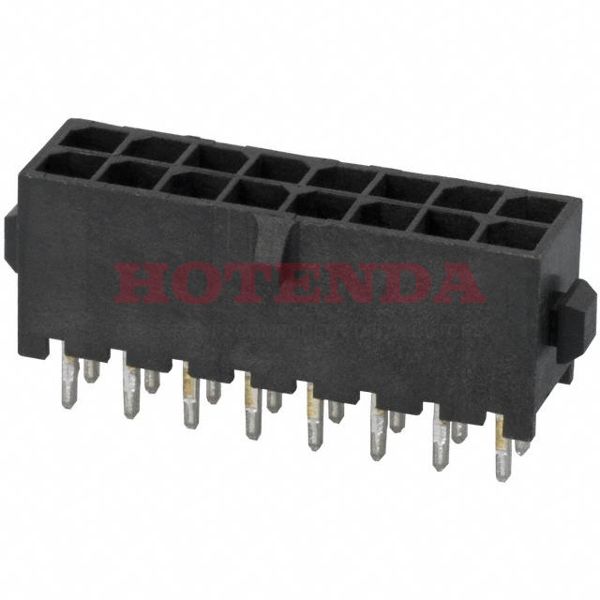

Description:Micro MATE-N-LOK Series 2-Row Header Press-Fit, Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 16-Position Board to Cable/Wire 0.364 9.25mm Height

Case Package:SOT-23

Datasheet:4-794630-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	19 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Material	Nylon
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	Micro MATE-N-LOK
Published	2002
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	16
Applications	General Purpose
Number of Rows	2
HTS Code	8536.69.40.30
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Orientation	Vertical
Depth	6.86mm
Insulation Height	0.364 9.25mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.118 3.00mm
Number of Conductors	ONE
Reference Standard	UL
Voltage - Rated AC	250V
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Lead Pitch	3mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
UL Flammability Code	94V-0
Housing Color	Black
Empty Shell	NO
Operating Supply Voltage	250V
Contact Resistance	20mOhm
Insulation Resistance	1GOhm
ELV	Compliant
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Number of Ports	1
Number of Poles	16
Withdrawl Force-Min	.695 N
Sealable	No
Contact Current Rating	5A
Circuit Application	Power
Contact Retention	Without
VDE Tested	Yes
Height	9.24mm
Length	24.86mm
Width	8.67mm
Contact Finish Thickness - Mating	100.0μin 2.54μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.6002mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

4-794630-6 Product Details

4-794630-6 Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Micro MATE-N-LOK Series.A variety of tasks can be managed through its 1 ports.A possible application for the device is General Purpose.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -40°C~105°C Operating Temperature.
