Name: EHT-105-01-S-D-RA
Brand: Samtec Inc.
SKU: EHT-105-01-S-D-RA
Price: 12.57000 USD
Availability: InStock

new

EHT-105-01-S-D-RA

Manufacturer part number:EHT-105-01-S-D-RA

Manufacturer:Samtec Inc.

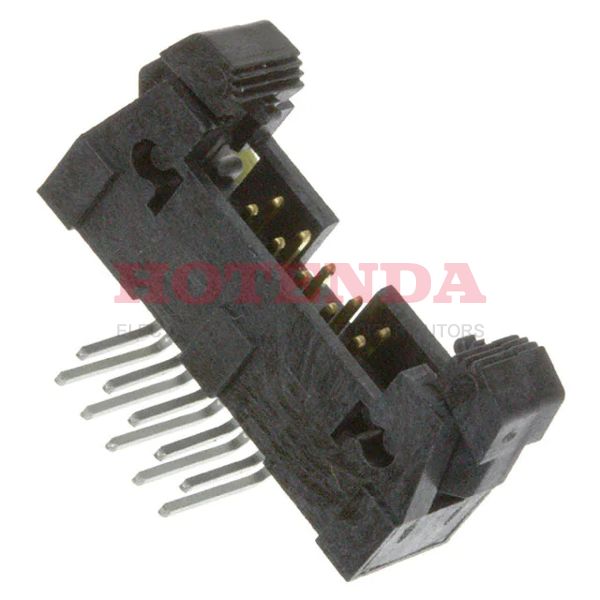

Description:Connector Ejector Header HDR 10 POS 2mm Solder RA Thru-Hole Tube

Case Package:SOT-23

Datasheet:EHT-105-01-S-D-RA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2000
Series	EHT
JESD-609 Code	e3
Feature	Keying Slot
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	10
Number of Rows	2
Gender	Male
Additional Feature	LATCHED
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Right Angle
Depth	15.71mm
Insulation Height	0.300 7.62mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.079 2.00mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.120 3.05mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.3 inch
UL Flammability Code	94V-0
Housing Color	Black
Mating Contact Pitch	0.079 inch
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Length	23.79mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
