Name: 3-794681-4
Brand: TE Connectivity AMP Connectors
SKU: 3-794681-4
Price: 2.00000 USD
Availability: InStock

new-10%

3-794681-4

Manufacturer part number:3-794681-4

Manufacturer:TE Connectivity AMP Connectors

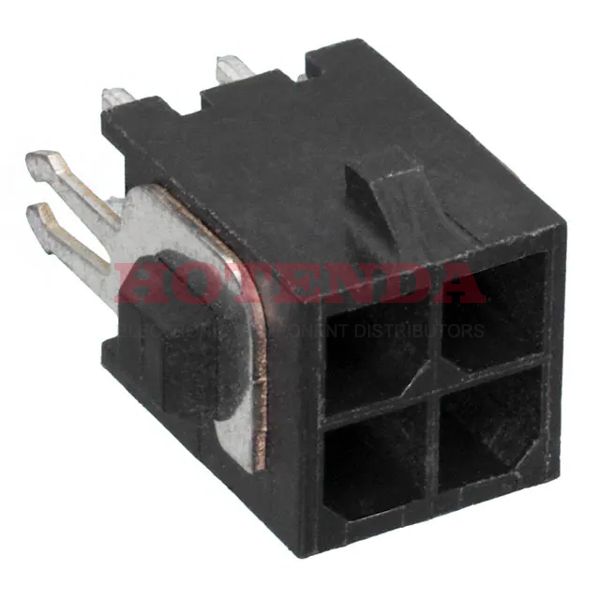

Description:Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.364 9.25mm Height

Case Package:SOT-23

Datasheet:3-794681-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	19 Weeks
Contact Material	Brass
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Housing Material	Nylon
Operating Temperature	-40°C~105°C
Packaging	Tray
Series	Micro MATE-N-LOK
Published	2008
Feature	Board Lock
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	4
Applications	General Purpose
Number of Rows	2
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Orientation	Vertical
Depth	8.67mm
Insulation Height	0.364 9.25mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.118 3.00mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Approval Agency	CSA
Row Spacing - Mating	0.118 (3.00mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
Empty Shell	NO
Operating Supply Voltage	250V
ELV	Compliant
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Number of Ports	1
Durability	75 Cycles
Withdrawl Force-Min	.695 N
Sealable	No
Contact Current Rating	5A
Circuit Application	Power
Contact Retention	Without
VDE Tested	Yes
Length	7mm
Plating Thickness	2.54μm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.57mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

3-794681-4 Product Details

3-794681-4 Overview

The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Micro MATE-N-LOK belongs to the Micro MATE-N-LOK Series.There are 1 ports available for managing a variety of tasks on this device.In addition to General Purpose, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.
