Name: 351-80-112-00-003101
Brand: Preci-Dip
SKU: 351-80-112-00-003101
Price: 1.22000 USD
Availability: InStock

new-10%

351-80-112-00-003101

Manufacturer part number:351-80-112-00-003101

Manufacturer:Preci-Dip

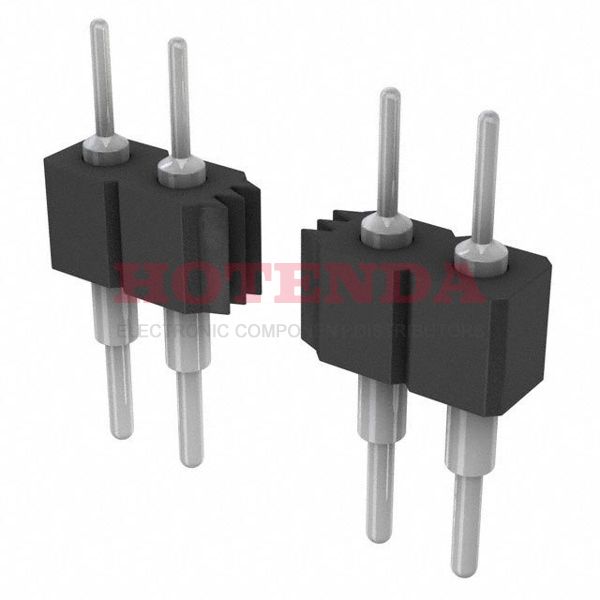

Description:351 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 12-Position Board to Board 0.116 2.95mm Height

Case Package:SOT-23

Datasheet:351-80-112-00-003101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	351
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	12
Number of Rows	1
Voltage - Rated	150VDC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.116 2.95mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.126 3.20mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Length - Mating	0.118 3.00mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.244 inch
Overall Contact Length	0.488 12.40mm
Durability	500 Cycles
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

351-80-112-00-003101 Product Details

351-80-112-00-003101 Overview

This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 351 Series.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
