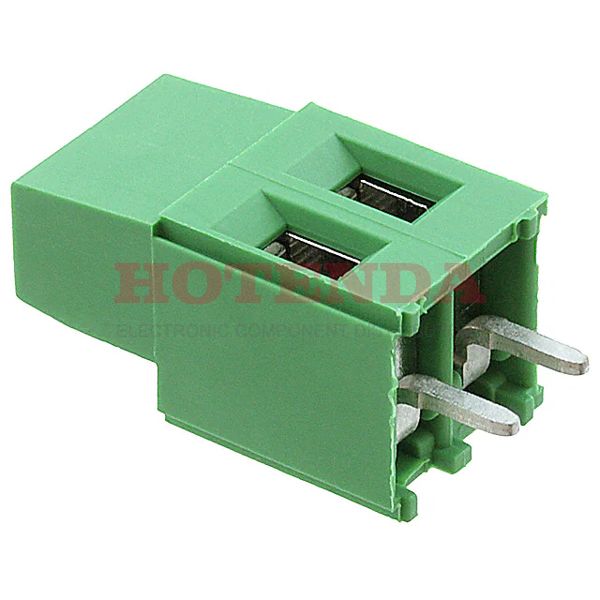

Name: 282856-2
Brand: TE Connectivity AMP Connectors
SKU: 282856-2
Price: 1.62000 USD
Availability: InStock

new-10%

282856-2

Manufacturer part number:282856-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282856-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2005
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA6-6, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	10mm
Current Rating	24A
Number of Contacts	2
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	24A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	10mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282856-2 Product Details

282856-2 Overview

The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.Further, there are features such as PA6-6, 94V-0, to name only a few.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.
