2-320569-3

2-320569-3

2-320569-3

TE Connectivity AMP Connectors

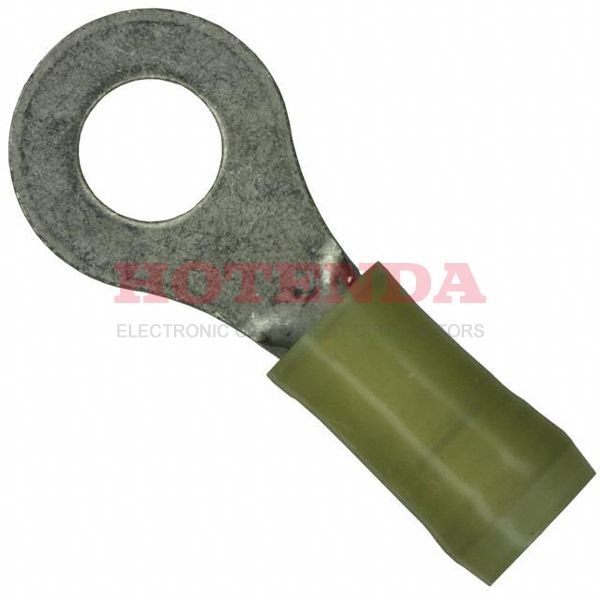

2-320569-3 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

SOT-23

2-320569-3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 4 Weeks
Contact MaterialCopper
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material - Insulation Polyamide (PA), Nylon
PackagingTape & Reel (TR)
Series PIDG
Published 2005
Feature Serrated Termination
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Color Yellow
Gender Female
HTS Code8536.90.40.00
Voltage - Rated DC 300V
Orientation Straight
Depth 13.49mm
Voltage - Rated AC 300V
Wire Gauge10-12 AWG
ELV Compliant
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 10 AWG
Wire/Cable Gauge 10 AWG
Terminal and Terminal Block Type RING TERMINAL
Insulation Diameter 0.150 ~ 0.230 (3.81mm ~ 5.84mm)
Insulation Insulated
Terminal TypeCircular
Wire/Cable Diameter 5.84 mm
Wire Cross Section 6.64 mm2
Stud/Tab Size 1/4 Stud
Insulated Wire Support Yes
Heavy Duty No
Stud Diameter 6.731 mm
Number of Holes 1
Stud Size M6
Length 35.58mm
Thickness 0.040 1.02mm
Length - Overall 1.322 33.58mm
Width - Outer Edges 0.531 13.49mm
Tongue Thickness 1.02mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:15087 items
