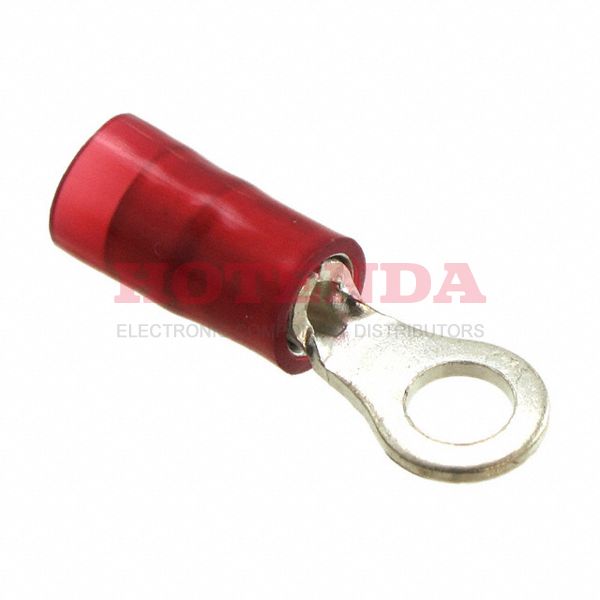

PN18-6R-M datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PN18-6R-M Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Weight
857.289579g
Material - Insulation
Polyamide (PA), Nylon
Packaging
Bulk
Series
Pan-Term®
Published
2006
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Red
HTS Code
8536.90.40.00
Orientation
Straight
Depth
6.4mm
Wire Gauge
18-22 AWG
Wire Gauge (Max)
22 AWG
Wire Gauge (Min)
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Insulated
Terminal Type
Circular
Wire Cross Section
1.5 mm2
Stud/Tab Size
6 Stud
Terminal Gender
FEMALE
Length
20.32mm
Width
6.35mm
Thickness
0.032 0.81mm
Length - Overall
0.800 20.32mm
Width - Outer Edges
0.250 6.35mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:11482 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.51000
$0.51
10
$0.49400
$4.94
25
$0.48280
$12.07
50
$0.47140
$23.57
100
$0.46020
$46.02
500
$0.44896
$224.48
PN18-6R-M Product Details
Panduit Terminals - Ring Connectors PN18-6R-M are designed for use in a variety of electrical applications. These terminals are made from high-quality materials and feature a crimp connection for secure and reliable connections. The terminals are designed to fit 18-22 AWG #6 wire and feature a ring design for easy installation.
Features: - Made from high-quality materials for reliable performance - Crimp connection for secure and reliable connections - Designed to fit 18-22 AWG #6 wire - Ring design for easy installation
