Name: 2-31090-1
Brand: TE Connectivity AMP Connectors
SKU: 2-31090-1
Price: 0.53000 USD
Availability: InStock

new-10%

2-31090-1

Manufacturer part number:2-31090-1

Manufacturer:TE Connectivity AMP Connectors

Description:2-31090-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:2-31090-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	15 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Tape & Reel (TR)
Series	Budget
Published	1997
Feature	Serrated Termination
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Crimp
ECCN Code	EAR99
Gender	Female
HTS Code	8536.90.40.00
Depth	5.54mm
Wire Gauge	16-22 AWG
ELV	Compliant
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	16 AWG
Terminal and Terminal Block Type	RING TERMINAL
Insulation	Non-Insulated
Terminal Type	Circular
Stud/Tab Size	5 Stud
Heavy Duty	No
Stud Diameter	3.18 mm
Number of Holes	1
Stud Size	M3
Length	11.4046mm
Thickness	0.031 0.79mm
Length - Overall	0.449 11.40mm
Diameter - Inside	1.65 mm
Width - Outer Edges	0.218 5.54mm
Material Thickness	840μm
Tongue Thickness	790μm
RoHS Status	RoHS Compliant
Lead Free	Not Applicable

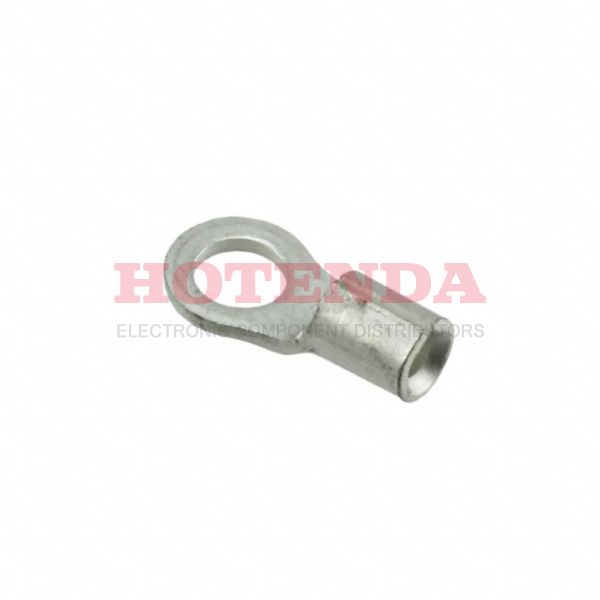

2-31090-1 Product Details

Description:
TE Connectivity / AMP Terminals - Ring Connectors 2-31090-1 are a type of electrical connector designed for use in a variety of applications. These connectors feature a circular design with a crimp connection for 16-22 AWG wire. The connectors are made from a durable material and are designed to provide reliable electrical connections.

Features:
- Circular design with crimp connection for 16-22 AWG wire
- Durable construction for reliable electrical connections
- Easy to install and use
- RoHS compliant

Applications:
TE Connectivity / AMP Terminals - Ring Connectors 2-31090-1 are suitable for a variety of applications, including automotive, industrial, and consumer electronics. They can be used to connect wires in a variety of electrical systems, including lighting, power, and control systems.
