Name: 2-1658045-2
Brand: TE Connectivity AMP Connectors
SKU: 2-1658045-2
Price: 14.81000 USD
Availability: InStock

new

2-1658045-2

Manufacturer part number:2-1658045-2

Manufacturer:TE Connectivity AMP Connectors

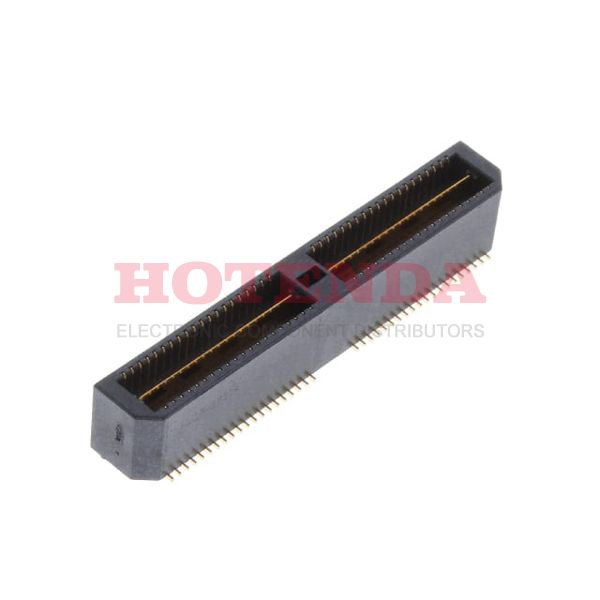

Description:Plug, Outer Shroud ContactsTray2 Rows0.031 0.80mmSurface Mount80 PositionsMICTOR SBGoldSMD/SMT, SolderBronze

Case Package:SOT-23

Datasheet:2-1658045-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Bronze
Contact Plating	Gold, Nickel
Mounting Type	Surface Mount
Contact Shape	Square
Housing Material	Polymer
Mounting Option 1	LOCKING
Board Mounting Option	PEG
PCB Mount Alignment	With
Packaging	Tray
Published	2005
Series	MICTOR SB
Feature	Board Guide, Ground Bus (Plane)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT, Solder
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	80
Max Operating Temperature	257°C
Min Operating Temperature	-85°C
Number of Rows	2
Gender	Male
Subcategory	Headers and Edge Type Connectors
Pitch	0.031 0.80mm
Total Number of Contacts	80
Orientation	Vertical
Number of Conductors	ONE
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	1.575 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Operating Supply Voltage	125V
Insulation Resistance	5GOhm
Row Spacing	4.73 mm
ELV	Compliant
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	675VAC V
Impedance	50Ohm
Durability	100 Cycles
Contact Pattern	RECTANGULAR
Sealable	No
Contact Current Rating	1.25A
Mating Alignment	Without
Height	7.06mm
Contact Finish Thickness	Flash
Contact Finish Thickness - Mating	127 nm
Height Above Board	0.286 7.26mm
Stack Height	8mm
RoHS Status	RoHS Compliant

2-1658045-2 Product Details

2-1658045-2 Overview

The packaging contains Plug, Outer Shroud Contacts.This product is packaged in a case marked Tray.There is a Surface Mount mounting type for the device.Product number MICTOR SB belongs to the MICTOR SB Series.Operating the device, it is possible to maintain Board Guide, Ground Bus (Plane).Whenever the temperature is below 257°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device can be used with a 125V supply since it is suitable for operation with this supply.
