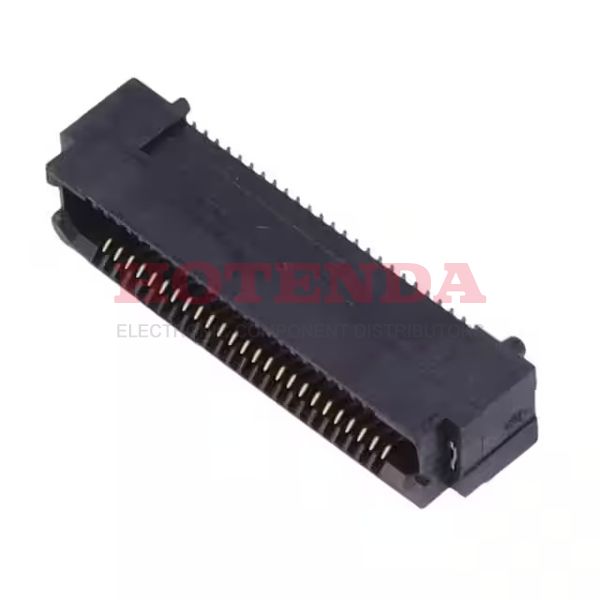

Name: ERF8-025-07.0-L-DV-EGP-TR
Brand: Samtec Inc.
SKU: ERF8-025-07.0-L-DV-EGP-TR
Price: 9.36000 USD
Availability: InStock

new

ERF8-025-07.0-L-DV-EGP-TR

Manufacturer part number:ERF8-025-07.0-L-DV-EGP-TR

Manufacturer:Samtec Inc.

Description:Socket, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 50 Positions Edge Rate™ ERF8 Gold Solder NOT SPECIFIED

Case Package:SOT-23

Datasheet:ERF8-025-07.0-L-DV-EGP-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	NOT SPECIFIED
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1	LOCKING
Packaging	Tape & Reel (TR)
Series	Edge Rate™ ERF8
JESD-609 Code	e3
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	50
Number of Rows	2
Gender	Female
Additional Feature	EDGE RATE CONTACT, E.L.P
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	50
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Min)	-55°C
Contact Style	BELLOWED TYPE
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	4.4958 mm
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Contact Finish Thickness	10.0μin 0.25μm
Plating Thickness	10μin
Height Above Board	0.285 7.24mm
Stack Height (Mating)	9mm 12mm 15mm 16mm 22mm
RoHS Status	ROHS3 Compliant

ERF8-025-07.0-L-DV-EGP-TR Product Details

ERF8-025-07.0-L-DV-EGP-TR Overview

Currently, it is packaged in Socket, Outer Shroud Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the Edge Rate™ ERF8 Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide when it operates.Furthermore, there are other features available, such as EDGE RATE CONTACT, E.L.P, to name a few.
