Name: 1546262-5
Brand: TE Connectivity AMP Connectors
SKU: 1546262-5
Price: 10.26000 USD
Availability: InStock

new

1546262-5

Manufacturer part number:1546262-5

Manufacturer:TE Connectivity AMP Connectors

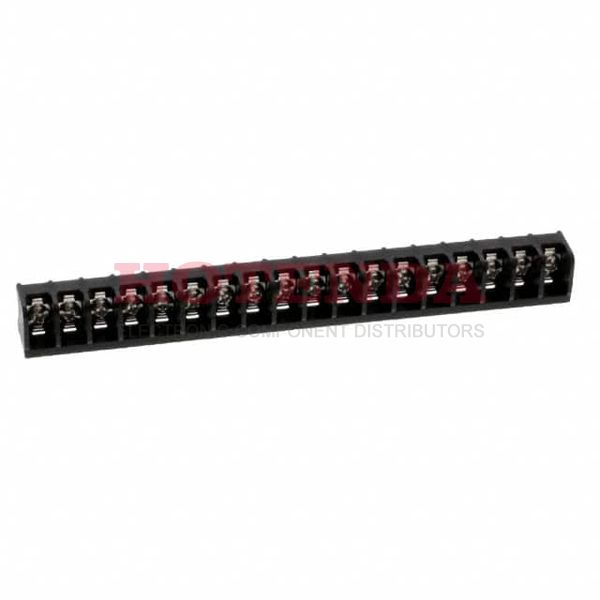

Description:Bulk 1 Rows Through Hole Barrier Block PC Pin #6, Buchanan 0.375 9.53mm 3 Wall (Tri) 18 Circuits Thermoplastic

Case Package:SOT-23

Datasheet:1546262-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	14 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Material - Insulation	Thermoplastic
Terminal Screw Material	Steel, Stainless
Operating Temperature	105°C
Packaging	Bulk
Series	#6, Buchanan
Published	2007
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	18
Color	Black
Number of Rows	1
Voltage - Rated	300V
Current Rating (Amps)	25A
Pitch	0.375 9.53mm
Orientation	Straight
Depth	17.78mm
Current Rating	5A
Number of Contacts	18
Housing Color	Black
Wire Gauge	12-22 AWG
Voltage	300V
Number of Circuits	18
Max Current Rating	25A
Number of Levels	1
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Terminal Block Type	Barrier Block
Bottom Termination	PC Pin
Barrier Type	3 Wall (Tri)
Top Termination	Screws
Number of Wire Entries	18
Max Supply Voltage (AC)	300V
Length	172.9994mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1546262-5 Product Details

1546262-5 Overview

The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the #6, Buchanan Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.Contains 18 circuits.105°C Operating Temperature is the default operating temperature for the device.
