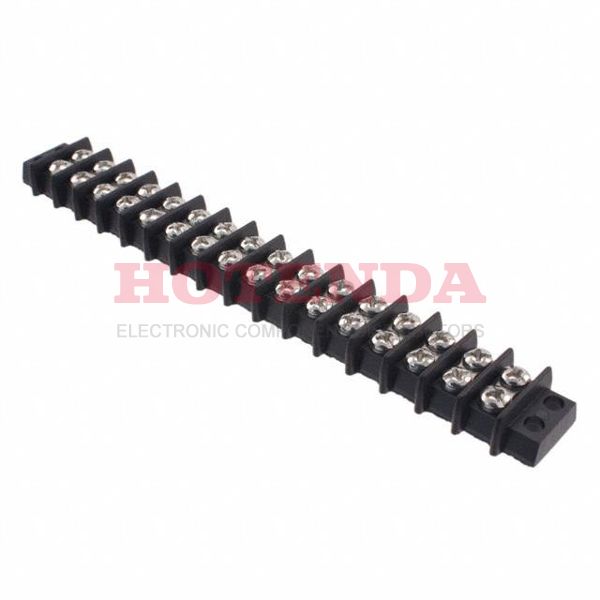

16-140

new-10%

Manufacturer part number:16-140

Manufacturer:Cinch Connectivity Solutions

Description:Bulk 2 Rows Chassis, Panel Barrier Block Closed 140 0.375 9.53mm 2 Wall (Dual) 16 Circuits Phenol Formaldehyde (Phenolic)

Case Package:SOT-23

Datasheet:16-140 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Mount	Chassis, Panel
Mounting Type	Chassis, Panel
Material	Phenolic
Housing Material	Plastic
Material - Insulation	Phenol Formaldehyde (Phenolic)
Terminal Screw Material	Steel
Operating Temperature	-55°F~300°F
Packaging	Bulk
Series	140
Published	2010
Feature	Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Color	Black
Number of Rows	2
HTS Code	8536.69.40.40
Pitch	0.375 9.53mm
Orientation	Straight
Depth	10.31mm
Current Rating	15A
Wire Gauge	16 AWG
Number of Circuits	16
Max Voltage Rating (AC)	250V
Max Current Rating	15A
Wire Gauge (Max)	16 AWG
Wire/Cable Gauge	16 AWG
Number of Poles	16
Number of Decks	1
Terminal Block Type	Barrier Block
Bottom Termination	Closed
Barrier Type	2 Wall (Dual)
Top Termination	Screws
Number of Ways	16
Safety Approval	UL; CSA
Terminal Screw Finish	Nickel
Number of Wire Entries	32
Height	10.3mm
Length	169.0878mm
Width	22.2mm
Material Flammability Rating	UL94 V-1
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-1
Lead Free	Lead Free
