Name: 1-5745968-3
Brand: TE Connectivity AMP Connectors
SKU: 1-5745968-3
Price: 10.55000 USD
Availability: InStock

new

1-5745968-3

Manufacturer part number:1-5745968-3

Manufacturer:TE Connectivity AMP Connectors

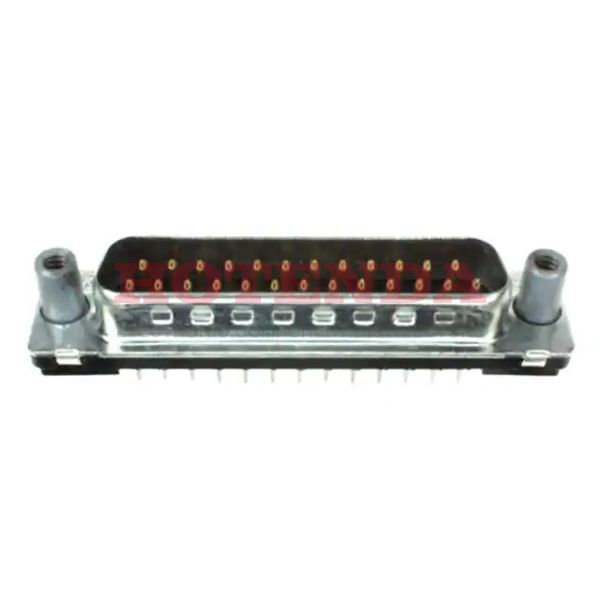

Description:AMPLIMITE HD-20 Series D-Sub Plug, Male Pins Male Signal Solder 3 DB B Through Hole Brass Gold Steel, Tin Plated

Case Package:SOT-23

Datasheet:1-5745968-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Round
Shell Material	Steel
Dielectric Material	Polyester
Body Material	Metal
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	1998
Series	AMPLIMITE HD-20
JESD-609 Code	e3
Feature	Grounding Indents
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	25
Termination	Solder
Connector Type	Plug, Male Pins
Color	Black
Number of Rows	2
Gender	Male
Voltage - Rated	125V
Subcategory	D Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.7432mm
Total Number of Contacts	25
Orientation	Vertical
Shielding	Shielded
Depth	12.55mm
Current Rating	6A
Shell Finish	TIN
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.494 inch
UL Flammability Code	94V-0
Lead Length	3.175mm
Empty Shell	NO
Rated Current (Signal)	6A
Row Spacing	2.8448 mm
Flange Feature	Mating Side, Female Screwlock (4-40)
ELV	Compliant
Max Voltage Rating (AC)	250V
Plating	Tin
Connector Style	D-Sub
Number of Ports	1
Max Voltage Rating (DC)	250.25kV
Sealable	No
Shell Size, Connector Layout	3 DB B
Hole Diameter	3.048 mm
Preloaded	Yes
Max Supply Voltage (DC)	250V
Max Supply Voltage (AC)	250V
Mating Connector Lock	With
Length	53.04mm
Contact Finish Thickness	Flash
PCB Thickness	2.36mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1-5745968-3 Product Details

1-5745968-3 Overview

The product comes in a package of Plug, Male Pins.Through Hole indicates that the device is mounted.We use a Tube case to package the product.This product is part of the AMPLIMITE HD-20 Series.It has 1 ports for managing stuff.A number of benefits can be derived from the Grounding Indents feature of this application.Through Hole is mounting the part.A 25 termination is present on the chip.-55°C~105°C Operating Temperature is the default.
