Name: DBMV25SNA197
Brand: ITT Cannon, LLC
SKU: DBMV25SNA197
Price: 30.87000 USD
Availability: InStock

new

DBMV25SNA197

Manufacturer part number:DBMV25SNA197

Manufacturer:ITT Cannon, LLC

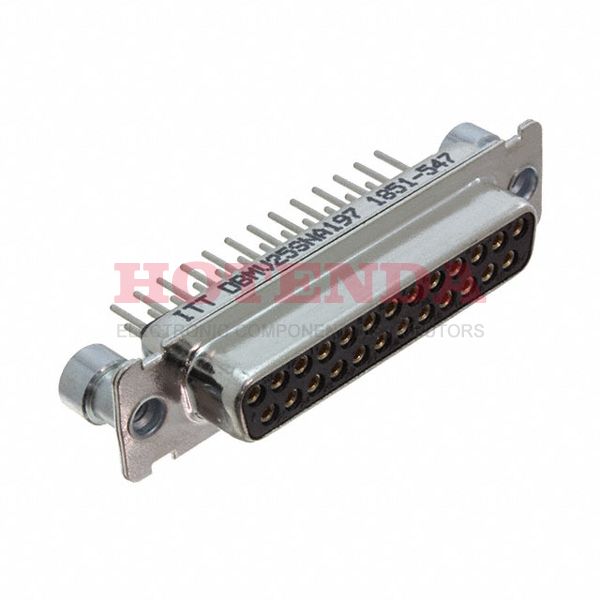

Description:D*M Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder 3 DB B Panel Mount, Through Hole Copper Alloy Gold Steel, Tin-Nickel Plated

Case Package:SOT-23

Datasheet:DBMV25SNA197 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Mount	Through Hole
Mounting Type	Panel Mount, Through Hole
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material	Thermoplastic
Body Material	Steel
Shell Material, Finish	Steel, Tin-Nickel Plated
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2015
Series	D*M
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Color	Black
Number of Rows	2
Gender	Receptacle
Subcategory	D Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.8mm
Total Number of Contacts	25
Orientation	Straight
Depth	12.55mm
Current Rating	7.5A
Shell Finish	TIN
Reference Standard	UL, CSA
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.494 inch
UL Flammability Code	94V-0
Empty Shell	NO
Rated Current (Signal)	5A
Contact Style	Socket
Contact Resistance	55mOhm
Flange Feature	Board Side (4-40)
Connector Style	D-Sub
Number of Ports	1
Contact Current Rating	7.5A
Contact Form	Machined
Shell Size, Connector Layout	3 DB B
Length	53.04mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

DBMV25SNA197 Product Details

DBMV25SNA197 Overview

The product is packaged in Receptacle, Female Sockets.This device has a mounting type of Panel Mount, Through Hole.Packaged in a Bulk case.It's part of the D*M Series.A variety of tasks can be performed using its 1 ports.The part is mounted by Through Hole.There is no operating temperature for the device.
