CB052E0105JBC

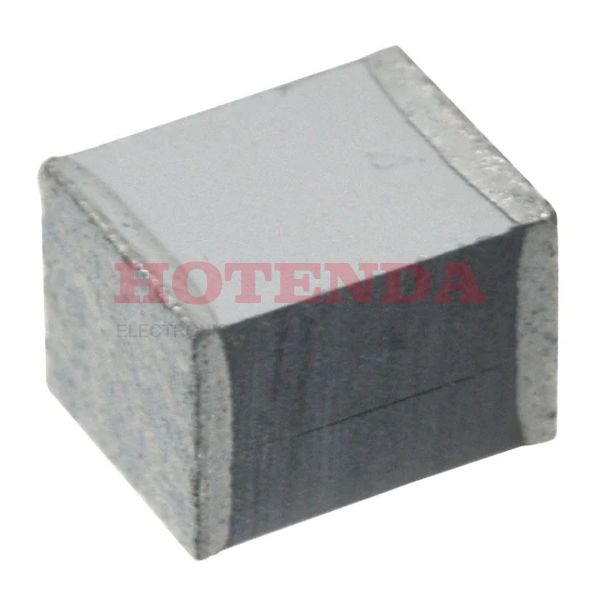

  • CB052E0105JBC - CB 1μF Film Capacitor ±5% 2824 (7260 Metric) Solder Pads 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount
  • CB052E0105JBC - CB 1μF Film Capacitor ±5% 2824 (7260 Metric) Solder Pads 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount

CB052E0105JBC

CB052E0105JBC

AVX Corporation

CB 1μF Film Capacitor ±5% 2824 (7260 Metric) Solder Pads 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Surface Mount

SOT-23

CB052E0105JBC Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2824 (7260 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2006
Series CB
Size / Dimension 0.283Lx0.240W 7.20mmx6.10mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Applications General Purpose
Additional FeatureAC RATED VOLTAGE(V):63
Capacitance 1μF
Voltage - Rated DC 100V
Packing Method TR, 13 INCH
Depth 6.1mm
Voltage - Rated AC 63V
Case Code (Metric) 7260
Case Code (Imperial) 2824
Capacitor Type FILM CAPACITOR
Dielectric PET
Voltage 100V
Height 5.6896mm
Height Seated (Max) 0.224 5.70mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:3587 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.009629$7.009629
10$6.612858$66.12858
100$6.238545$623.8545
500$5.885420$2942.71
1000$5.552282$5552.282

CB052E0105JBC Product Details

CB052E0105JBC Overview


A temperature of -55°C~125°C is suitable for operation of the device.

CB052E0105JBC Features



CB052E0105JBC Applications


There are a lot of AVX Corporation CB052E0105JBC applications of film capacitors.

  • Electronic ballasts
  • Filters
  • Satellite TV
  • RF Modules
  • Switch-mode power supplies
  • Test and measuring equipment
  • Industrial and automotive inverters
  • Blocking
  • Matching networks
  • TV and monitor sets
