Name: B32671L0332J289
Brand: TDK Electronics Inc.
SKU: B32671L0332J289
Price: 0.15000 USD
Availability: InStock

new-10%

B32671L0332J289

Manufacturer part number:B32671L0332J289

Manufacturer:TDK Electronics Inc.

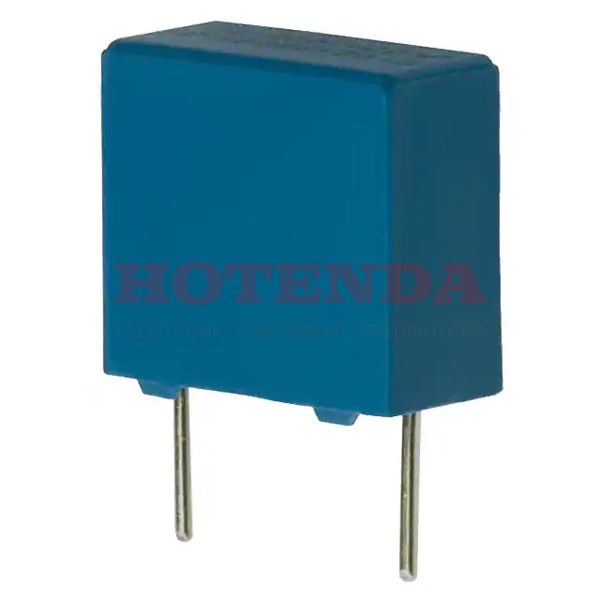

Description:B32671L 3300pF Film Capacitor ±5% Radial PC Pins 1000V 1kV-DC 500V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32671L0332J289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~110°C
Packaging	Tape & Box (TB)
Series	B32671L
Size / Dimension	0.512Lx0.157W 13.00mmx4.00mm
Tolerance	±5%
JESD-609 Code	e3
Feature	High Temperature
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	High Frequency, Switching; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	3300pF
Voltage - Rated DC	1000V 1kV
Packing Method	AMMO PACK
Terminal Pitch	10mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	500V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.394 10.00mm
Rated (DC) Voltage (URdc)	1000V
Size Code	5116
Rated (AC) Voltage (URac)	500V
Height Seated (Max)	0.354 9.00mm
Length	13mm
Width	4mm
RoHS Status	ROHS3 Compliant

B32671L0332J289 Product Details

B32671L0332J289 Overview

For systems to operate, a rated (DC) voltage (URdc) of 1000V must be applied internally.Lead spacing is 0.394 10.00mm for this electrical device.In order to power systems, you must have a rated (AC) voltage of 500V (URac).Devices with a -55°C~110°C temperature capability can be operated.
