ECQ-E4183JF

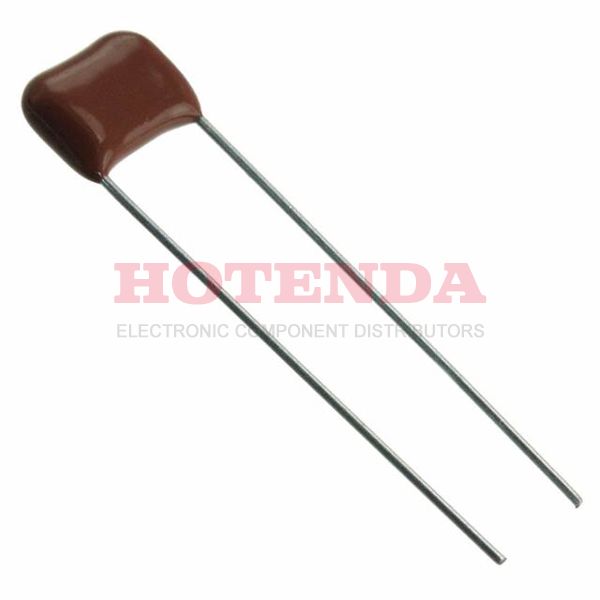

  • ECQ-E4183JF - ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole
  • ECQ-E4183JF - ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

ECQ-E4183JF

ECQ-E4183JF

Panasonic Electronic Components

ECQ-E(F) 0.018μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E4183JF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECQ-E(F)
Size / Dimension 0.406Lx0.173W 10.30mmx4.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 400V
HTS Code8532.25.00.70
Capacitance 0.018μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Depth 4.4mm
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Lead Diameter 600 μm
Size Code 4117
Height 7.5mm
Height Seated (Max) 0.335 8.50mm
Length 10.3mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:13316 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.406296$0.406296
10$0.383298$3.83298
100$0.361602$36.1602
500$0.341133$170.5665
1000$0.321824$321.824

ECQ-E4183JF Product Details

ECQ-E4183JF Overview


Lead spacing is 0.295 7.50mm for this electrical device.A temperature of -40°C~105°C is suitable for operation of the device.

ECQ-E4183JF Features



ECQ-E4183JF Applications


There are a lot of Panasonic Electronic Components ECQ-E4183JF applications of film capacitors.

  • VCO's
  • Switch mode power supplies
  • Audio/video equipment
  • Filters
  • Matching networks
  • Electronic ballasts
  • RF Modules
  • Test and measuring equipment
  • RFI for automotive
  • Filtering
