Name: B32656A0684K000
Brand: TDK Electronics Inc.
SKU: B32656A0684K000
Price: 5.95000 USD
Availability: InStock

new-10%

B32656A0684K000

Manufacturer part number:B32656A0684K000

Manufacturer:TDK Electronics Inc.

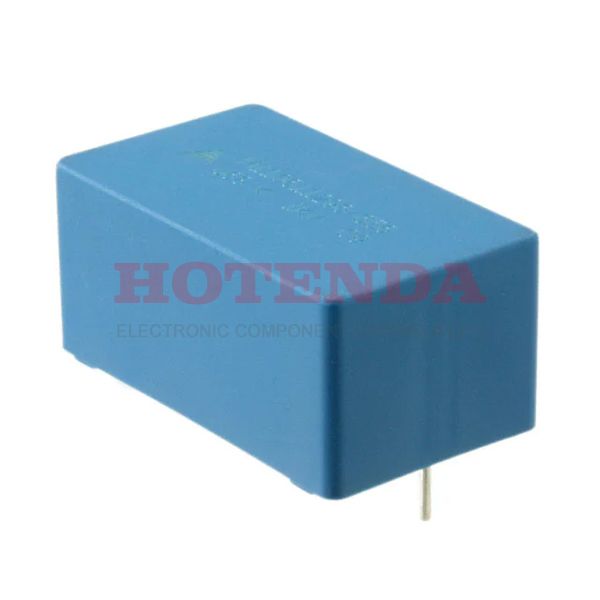

Description:B32656 0.68μF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 500V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32656A0684K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Bulk
Published	2013
Series	B32656
Size / Dimension	1.654Lx0.630W 42.00mmx16.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 500
HTS Code	8532.25.00.70
Capacitance	0.68μF
Voltage - Rated DC	1000V 1kV
Terminal Pitch	37.5mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	500V
Capacitor Type	FILM CAPACITOR
Lead Spacing	1.476 37.50mm
Rated (DC) Voltage (URdc)	1000V
Rated (AC) Voltage (URac)	500V
Height Seated (Max)	1.122 28.50mm
Length	42mm
Width	16mm
RoHS Status	ROHS3 Compliant

B32656A0684K000 Product Details

B32656A0684K000 Overview

To function, systems require a rated (DC) voltage (URdc) of 1000V.Its lead spacing is 1.476 37.50mm.System power requires an AC voltage rating of 500V (URac).Temperatures of -55°C~100°C allow the device to operate.
