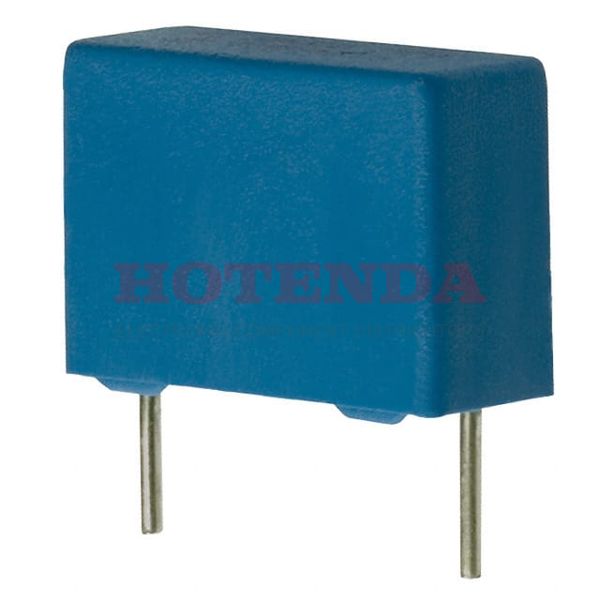

Name: B32652A0683K289
Brand: TDK Electronics Inc.
SKU: B32652A0683K289
Price: 0.32000 USD
Availability: InStock

new-10%

B32652A0683K289

Manufacturer part number:B32652A0683K289

Manufacturer:TDK Electronics Inc.

Description:B32652 0.068μF Film Capacitor ±10% Radial PC Pins 1000V 1kV-DC 250V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32652A0683K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Tape & Box (TB)
Series	B32652
Size / Dimension	0.709Lx0.335W 18.00mmx8.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT; Snubber
Additional Feature	RATED AC VOLTAGE (V): 250
HTS Code	8532.25.00.70
Capacitance	0.068μF
Voltage - Rated DC	1000V 1kV
Packing Method	AMMO PACK
Terminal Pitch	15mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	250V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	1000V
Size Code	7133
Rated (AC) Voltage (URac)	250V
Height Seated (Max)	0.571 14.50mm
Length	18mm
Width	8.5mm
RoHS Status	ROHS3 Compliant

B32652A0683K289 Product Details

B32652A0683K289 Overview

To function, systems must have a rated (DC) voltage (URdc) of 1000V.Electrical devices such as this have a lead spacing of 0.591 15.00mm.Systems require a voltage of 250V (URac) for internal rated (AC) power.Temperatures of -55°C~100°C are suitable for operating the device.
