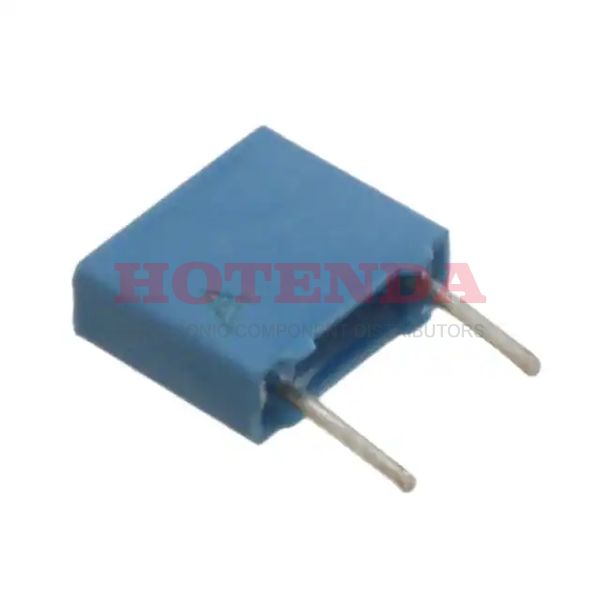

Name: B32529C1333M289
Brand: TDK Electronics Inc.
SKU: B32529C1333M289
Availability: InStock

new-10%

B32529C1333M289

Manufacturer part number:B32529C1333M289

Manufacturer:TDK Electronics Inc.

Description:B32529 0.033μF Film Capacitor ±20% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32529C1333M289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Series	B32529
Size / Dimension	0.287Lx0.098W 7.30mmx2.50mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.033μF
Voltage - Rated DC	100V
Packing Method	AMMO PACK
Terminal Pitch	5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.197 5.00mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.256 6.50mm
Length	7.3mm
Width	2.5mm
RoHS Status	ROHS3 Compliant

B32529C1333M289 Product Details

B32529C1333M289 Overview

The rated (DC) voltage (URdc) of systems should be 100V.Its lead spacing is 0.197 5.00mm.Systems require a voltage of 63V (URac) for internal rated (AC) power.It is capable of operating at -55°C~125°C degrees Celsius.
