ECQ-E6684KZ

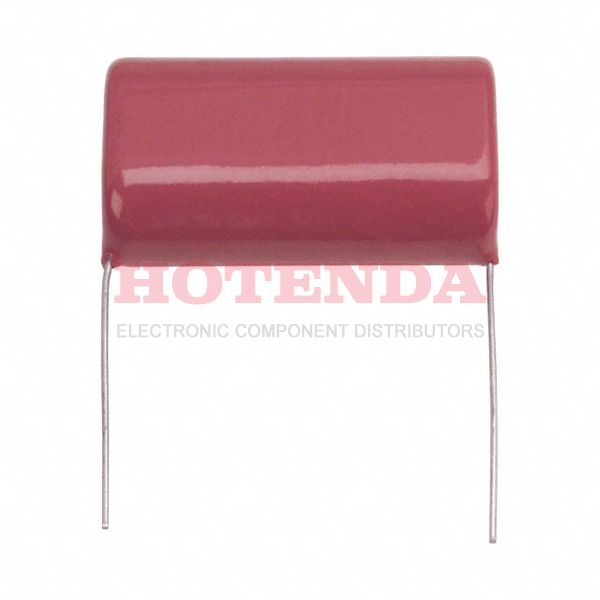

  • ECQ-E6684KZ - ECQ-E(K) 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole
  • ECQ-E6684KZ - ECQ-E(K) 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

ECQ-E6684KZ

ECQ-E6684KZ

Panasonic Electronic Components

ECQ-E(K) 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E6684KZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2002
Series ECQ-E(K)
Size / Dimension 1.673Lx0.472W 42.50mmx12.00mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.68μF
Voltage - Rated DC 630V
Lead Pitch 38.5064mm
Lead Length 25mm
Lead Spacing1.516 38.50mm
Height 19.5mm
Height Seated (Max) 0.807 20.50mm
Length 42.4942mm
Width 11.9888mm
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:1202 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.18000$2.18
10$1.35300$13.53
100$0.83310$83.31
500$0.64920$324.6

ECQ-E6684KZ Product Details

ECQ-E6684KZ Overview


Electrical devices have 1.516 38.50mm lead spacing.Devices with a -40°C~85°C temperature capability can be operated.

ECQ-E6684KZ Features



ECQ-E6684KZ Applications


There are a lot of Panasonic Electronic Components ECQ-E6684KZ applications of film capacitors.

  • Global positioning systems
  • Compact fluorescent lamps (CFL)
  • Lighting
  • IGBT
  • Electronic ballasts
  • RF Modules
  • Satellite TV
  • RFI for automotive
  • Mobile communications
  • Coupling, decoupling
