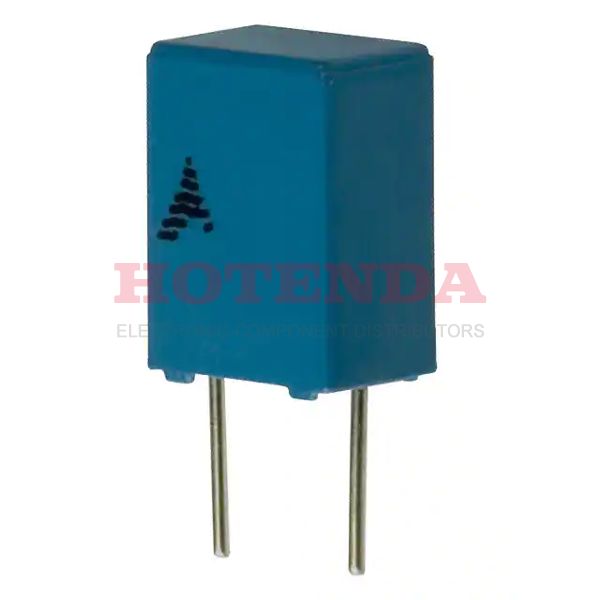

Name: B32529C0684K000
Brand: TDK Electronics Inc.
SKU: B32529C0684K000
Price: 0.70000 USD
Availability: InStock

new-10%

B32529C0684K000

Manufacturer part number:B32529C0684K000

Manufacturer:TDK Electronics Inc.

Description:B32529 0.68μF Film Capacitor ±10% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32529C0684K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32529
Size / Dimension	0.287Lx0.177W 7.30mmx4.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	0.68μF
Voltage - Rated DC	63V
Terminal Pitch	5mm
Reference Standard	AEC-Q200
Voltage - Rated AC	40V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.197 5.00mm
Rated (DC) Voltage (URdc)	63V
Rated (AC) Voltage (URac)	40V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.374 9.50mm
Length	7.3mm
Width	4.5mm
RoHS Status	ROHS3 Compliant

B32529C0684K000 Product Details

B32529C0684K000 Overview

To function, systems require a rated (DC) voltage (URdc) of 63V.Its lead spacing is 0.197 5.00mm.In order for systems to be powered, a constant (AC) voltage (URac) is required.-55°C~125°C is the maximum temperature at which the device can operate.
