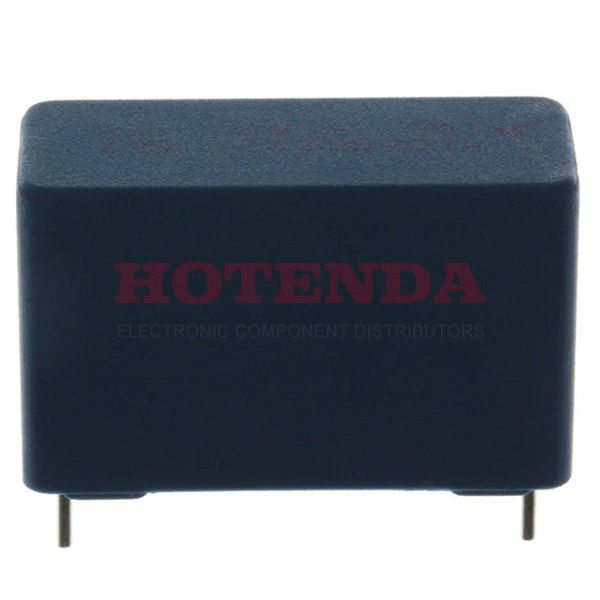

Name: B32523Q3225M000
Brand: TDK Electronics Inc.
SKU: B32523Q3225M000
Price: 0.58000 USD
Availability: InStock

new-10%

B32523Q3225M000

Manufacturer part number:B32523Q3225M000

Manufacturer:TDK Electronics Inc.

Description:B32523 2.2μF Film Capacitor ±20% Radial PC Pins 250V-DC 160V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32523Q3225M000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32523
Size / Dimension	1.043Lx0.413W 26.50mmx10.50mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	2.2μF
Voltage - Rated DC	250V
Terminal Pitch	22.5mm
Reach Compliance Code	not_compliant
Reference Standard	AEC-Q200
Voltage - Rated AC	160V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	250V
Rated (AC) Voltage (URac)	160V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.650 16.50mm
Length	26.5mm
Width	10.5mm
RoHS Status	ROHS3 Compliant

B32523Q3225M000 Product Details

B32523Q3225M000 Overview

An internal (DC) voltage of 250V is required for systems to function.The lead spacing of this electrical device is 0.886 22.50mm.System power requires an AC voltage rating of 160V (URac).It is capable of operating at -55°C~125°C degrees Celsius.
