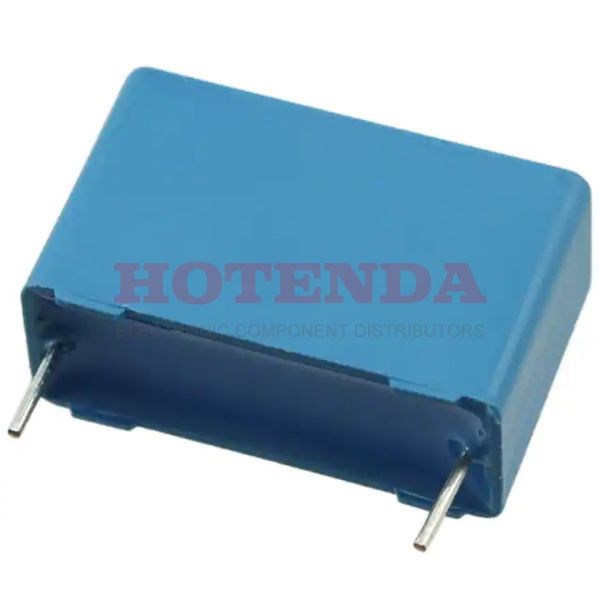

Name: B32523Q1335J000
Brand: TDK Electronics Inc.
SKU: B32523Q1335J000
Price: 0.81000 USD
Availability: InStock

new-10%

B32523Q1335J000

Manufacturer part number:B32523Q1335J000

Manufacturer:TDK Electronics Inc.

Description:B32523 3.3μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized

Case Package:SOT-23

Datasheet:B32523Q1335J000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	22 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32523
Size / Dimension	1.043Lx0.236W 26.50mmx6.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	3.3μF
Voltage - Rated DC	100V
Terminal Pitch	22.5mm
Reach Compliance Code	not_compliant
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.591 15.00mm
Length	26.5mm
Width	6mm
RoHS Status	ROHS3 Compliant

B32523Q1335J000 Product Details

B32523Q1335J000 Overview

To function, systems must have a rated (DC) voltage (URdc) of 100V.0.886 22.50mm is the lead spacing of this electrical device.System power requires an AC voltage rating of 63V (URac).The device is capable of operating at the temperature of -55°C~125°C.
