Name: B32520C1154K289
Brand: TDK Electronics Inc.
SKU: B32520C1154K289
Price: 0.13000 USD
Availability: InStock

new-10%

B32520C1154K289

Manufacturer part number:B32520C1154K289

Manufacturer:TDK Electronics Inc.

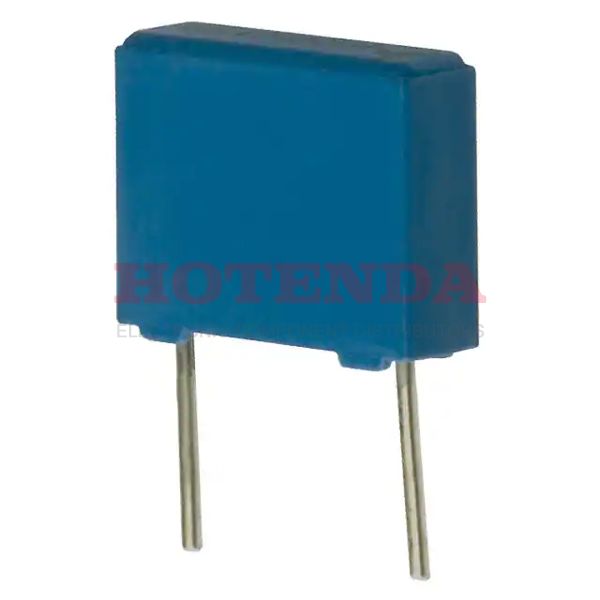

Description:B32520 0.15μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32520C1154K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Series	B32520
Size / Dimension	0.394Lx0.118W 10.00mmx3.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
Additional Feature	RATED AC VOLTAGE (V): 400
HTS Code	8532.25.00.70
Capacitance	0.15μF
Voltage - Rated DC	100V
Packing Method	AMMO PACK
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.295 7.50mm
Rated (DC) Voltage (URdc)	100V
Height Seated (Max)	0.315 8.00mm
RoHS Status	ROHS3 Compliant

B32520C1154K289 Product Details

B32520C1154K289 Overview

To work properly, systems need a rated (DC) voltage of 100V.A 0.295 7.50mm lead spacing is used in this electrical device.Temperatures of -55°C~125°C are suitable for operating the device.
