ECQ-E6822KF

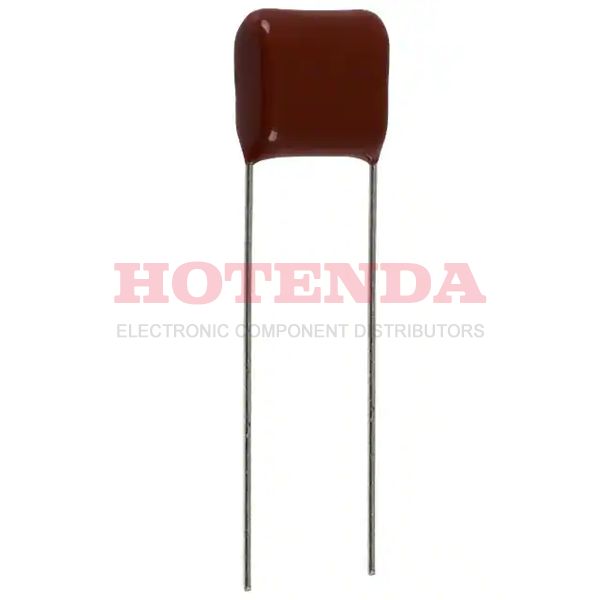

  • ECQ-E6822KF - ECQ-E(F) 8200pF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole
  • ECQ-E6822KF - ECQ-E(F) 8200pF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

ECQ-E6822KF

ECQ-E6822KF

Panasonic Electronic Components

ECQ-E(F) 8200pF Film Capacitor ±10% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E6822KF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECQ-E(F)
Size / Dimension 0.472Lx0.177W 12.00mmx4.50mm
Tolerance ±10%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.80
Capacitance 8200pF
Voltage - Rated DC 630V
Depth 4.9mm
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 4718
Height 10mm
Height Seated (Max) 0.433 11.00mm
Length 12mm
Width 4.5mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:13192 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.380779$0.380779
10$0.359226$3.59226
100$0.338893$33.8893
500$0.319709$159.8545
1000$0.301613$301.613

ECQ-E6822KF Product Details

ECQ-E6822KF Overview


This electrical device has a 0.394 10.00mm lead spacing.-40°C~105°C is the maximum temperature at which the device can operate.

ECQ-E6822KF Features



ECQ-E6822KF Applications


There are a lot of Panasonic Electronic Components ECQ-E6822KF applications of film capacitors.

  • Filters
  • Filtering
  • Industrial and automotive inverters
  • Blocking
  • Coupling, decoupling
  • Lighting
  • Mobile communications
  • Switch-mode power supplies
  • Electronic ballasts
  • Global positioning systems
