Name: EN3P10FRAPCBN
Brand: Switchcraft Inc.
SKU: EN3P10FRAPCBN
Price: 20.63000 USD
Availability: InStock

new

EN3P10FRAPCBN

Manufacturer part number:EN3P10FRAPCBN

Manufacturer:Switchcraft Inc.

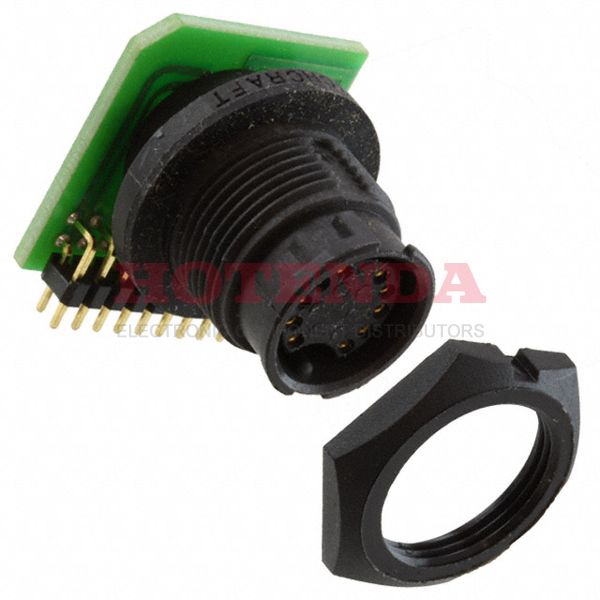

Description:Receptacle, Female Sockets Thermoplastic Panel Mount, Through Hole, Right Angle 10 Positions Circuit Board, Solder Gold Bulk Keyed Bayonet Lock

Case Package:SOT-23

Datasheet:EN3P10FRAPCBN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Bulkhead, Panel, Through Hole
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut
Shell Material	Thermoplastic
Insert Material	Elastomer
Operating Temperature	-40°C~65°C
Packaging	Bulk
Published	2012
Series	EN3®
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Circuit Board, Solder
ECCN Code	EAR99
Connector Type	Receptacle, Female Sockets
Number of Positions	10
Color	Black
Applications	General Purpose, Instrumentation, Marine, Medical
Voltage - Rated	250VAC/DC
HTS Code	8536.69.40.20
Fastening Type	Bayonet Lock
Contact Finish - Mating	Gold
Orientation	Keyed
Shielding	Unshielded
Ingress Protection	IP66/68 - Dust Tight, Water Resistant, Waterproof
Current Rating	2A
Contact Gender	Female
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant
Ratings	Dust Tight, IP66, IP68, Water Resistant, Waterproof

EN3P10FRAPCBN Product Details

EN3P10FRAPCBN Overview

Receptacle, Female Sockets packaging is included.This device has a mounting type of Panel Mount, Through Hole, Right Angle.We package the product with a Bulk case.The product is part of the EN3® Series.You've got Bulkhead, Panel, Through Hole mounted on the part.This device runs at -40°C~65°C operating temperature.
