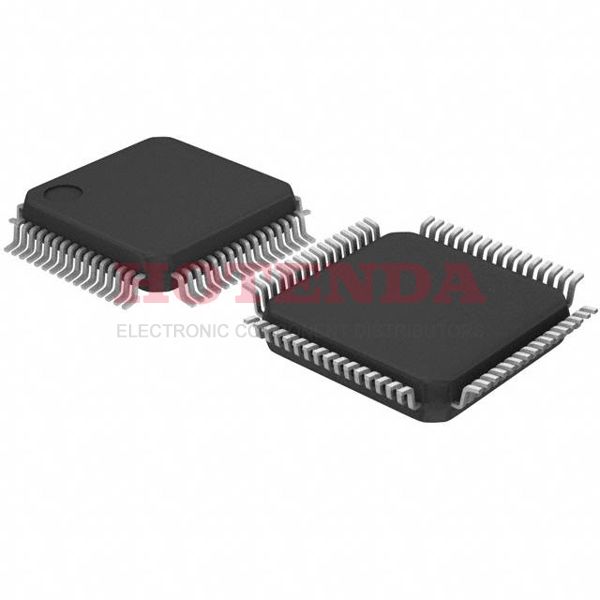

STM32F405RGT6 Description
The STM32F405xx and STM32F407xx series operate in the temperature range from-40 °C to + 105 °C and supply voltages from 1.8 to 3.6V. When the device uses an external power monitor to operate in the temperature range of 0 to 70 °C, the power supply voltage can be reduced to 1.7 V: see section: internal reset off. A comprehensive set of power-saving modes allows the design of low-power applications. The STM32F405xx and STM32F407xx series offer devices in a variety of packages ranging from 64pin to 176pin. The set of peripherals included varies depending on the selected device.
STM32F405RGT6 Features
? Core: Arm? 32-bit Cortex?-M4 CPU with FPU,
Adaptive real-time accelerator (ARTAccelerator) allowing 0-wait state execution
from Flash memory, frequency up to 168 MHz,
memory protection unit, 210 DMIPS/
1.25 DMIPS/MHz (Dhrystone 2.1), and DSP
instructions
? Memories
– Up to 1 Mbyte of Flash memory
– Up to 192+4 Kbytes of SRAM including 64-
Kbyte of CCM (core coupled memory) data
RAM
– 512 bytes of OTP memory
– Flexible static memory controller
supporting Compact Flash, SRAM,
PSRAM, NOR and NAND memories
? LCD parallel interface, 8080/6800 modes
? Clock, reset and supply management
– 1.8 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC (1%
accuracy)
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
? Low-power operation
– Sleep, Stop and Standby modes
– VBAT supply for RTC, 20×32 bit backup
registers + optional 4 KB backup SRAM
? 3×12-bit, 2.4 MSPS A/D converters: up to 24
channels and 7.2 MSPS in triple interleaved
mode
? 2×12-bit D/A converters
? General-purpose DMA: 16-stream DMA
controller with FIFOs and burst support
STM32F405RGT6 Applications
? Motor drive and application control
? Medical equipment
? Industrial applications: PLC, inverters, circuit breakers
? Printers, and scanners
? Alarm systems, video intercom, and HVAC
Home audio appliances
