Name: PIC18F46K42T-I/MV
Brand: Microchip Technology
SKU: PIC18F46K42T-I/MV
Price: 2.73000 USD
Availability: InStock

new-10%

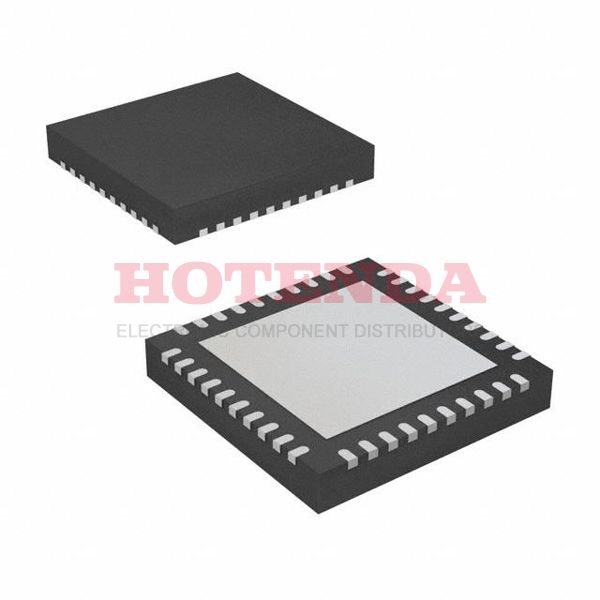

PIC18F46K42T-I/MV

Manufacturer part number:PIC18F46K42T-I/MV

Manufacturer:Microchip Technology

Description:64KB 32K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F46K42 64(MHz) 3V 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F46K42T-I/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	40-UQFN (5x5)
Mounting Style	SMD/SMT
Data Converters	A/D 35x12b, D/A 1x5b
Instruction Set Architecture	RISC
Clock Freq	64(MHz)
DAC Resolution	5
Operating Temperature Classification	Industrial
Package Type	UQFN EP
Number of Timers - General Purpose	7
Operating Temp Range	-40C to 85C
# I/Os (Max)	36
Interface Type	I2C/SPI/UART
Total Internal Ram Size	4KB(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Typ)	2.5/3.3/5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	2.3(V)
Programmable	Yes
Mounting	Surface Mount
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	PIC18F46
Mfr	Microchip Technology
Product Status	Active
Number of I/Os	36 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	PIC® XLP™ 18K
Published	2018
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPERATES WITH 2.5VMIN @ 32MHZ AND 2.3VMIN @ 16MHZ
HTS Code	8542.31.00.01
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Terminal Pitch	0.4mm
Frequency	64(MHz)
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	PIC18F46K42
Pin Count	40
JESD-30 Code	S-PQCC-N40
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	36
Speed	64MHz
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, DMA, HLVD, POR, PWM, WDT
Clock Frequency	64MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 32K x 16
Connectivity	I2C, LINbus, SPI, UART/USART
Data Converter	A/D 35x12b; D/A 1x5b
Has ADC	YES
DMA Channels	YES
Data Bus Width	8 bit
PWM Channels	YES
DAC Channels	YES
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	1K x 8
On Chip Program ROM Width	8
Screening Level	TS 16949
Number of ADC Channels	35 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	5mm
Height Seated (Max)	0.55mm
Width	5mm
RoHS Status	ROHS3 Compliant

PIC18F46K42T-I/MV Product Details

PIC18F46K42T-I/MV Overview

The package is in 40-UFQFN Exposed Pad format. The MCU has 36 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 8-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the PIC® XLP™ 18K series of components. Microcontroller has abundant program memory size of 64KB 32K x 16. The PIC Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER, RISC uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 40 of terminations. There is an output of 3V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. PIC18F46K42 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 64(MHz) and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. It consists of 40 pins. In terms of frequency, it operates at a 64MHz clock rate. In addition, there are several other features that can be found in the software, including ALSO OPERATES WITH 2.5VMIN @ 32MHZ AND 2.3VMIN @ 16MHZ. There are a total of 35 Channel channels for the ADC on this board, so it has a total of 35 Channel channels.
