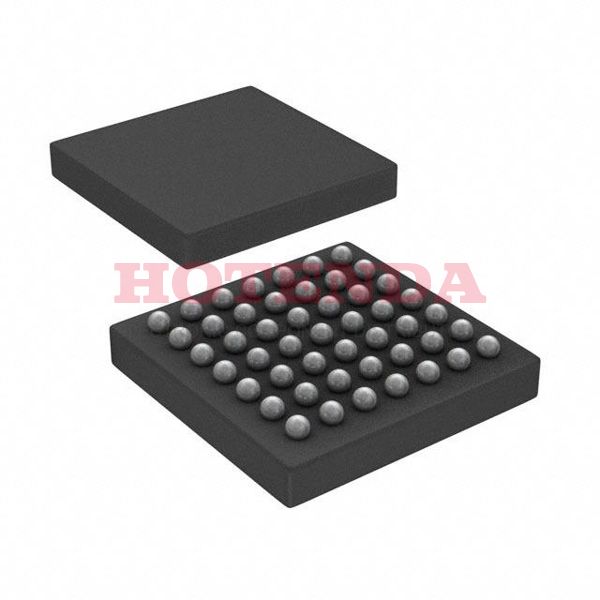

Name: STM32F401CBY6TR
Brand: STMicroelectronics
SKU: STM32F401CBY6TR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	49-UFBGA, WLCSP
Surface Mount	YES
Number of Pins	49
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	STM32F4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	49
Max Power Dissipation	385mW
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3.3V
Frequency	84MHz
Base Part Number	STM32F401
Operating Supply Voltage	3.3V
Interface	I2C, I2S, IrDA, LIN, SDIO, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	36
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
Bit Size	32
Data Converter	A/D 10x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
Number of Timers/Counters	8
Core Architecture	ARM
Number of ADC Channels	10
Number of PWM Channels	4
Number of I2C Channels	3
Number of SPI Channels	7
Number of USB Channels	1
Height	380μm
Length	3mm
Width	3mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

STM32F401CBY6TR Product Details

STM32F401CBY6TR Description

The STM32F401CBY6TR device is based on the high-performance Arm? Cortex? -M4 32-bit RISC core operating at a frequency of up to 84 MHz.

It incorporates high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 64 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

STM32F401CBY6TR Features

Core: Arm^? 32-bit Cortex^?-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator^?) allowing 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Dynamic efficiency line with BAM (batch acquisition mode)
1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer
Advanced connectivity
CRC calculation unit
96-bit unique ID
RTC: subsecond accuracy, hardware calendar
All packages are ECOPACK2^?
