Name: ATXMEGA128B3-ANR
Brand: Microchip Technology
SKU: ATXMEGA128B3-ANR
Availability: InStock

new-10%

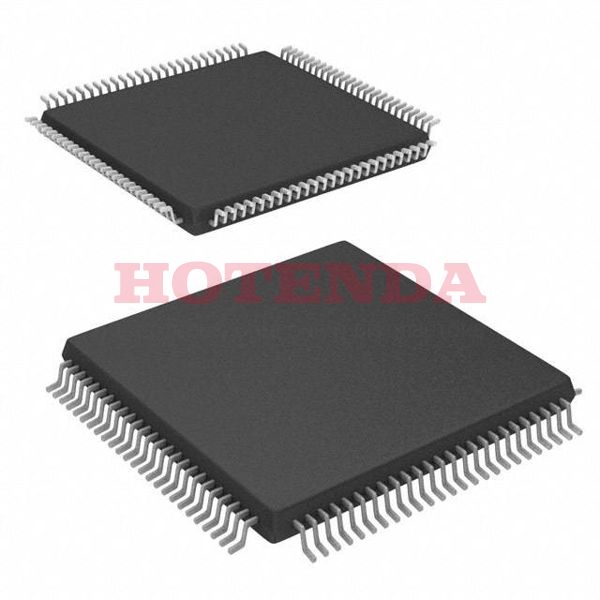

ATXMEGA128B3-ANR

Manufacturer part number:ATXMEGA128B3-ANR

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® B3 Series ATXMEGA128 100 Pin 32MHz 3.3V 100-TQFP

Case Package:SOT-23

Datasheet:ATXMEGA128B3-ANR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TQFP (14x14)
Number of Terminals	64
Interfaces	SPI/TWI/USART/USB
Data Converters	A/D 8x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATXMEGA128
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	36
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	AVR® XMEGA® B3
Published	2014
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	32MHz
Base Part Number	ATXMEGA128
JESD-30 Code	S-PQFP-G64
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.6V
Temperature Grade	INDUSTRIAL
Interface	I2C, IrDA, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	36
Speed	32MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, IrDA, SPI, UART/USART, USB
Bit Size	16
Data Converter	A/D 8x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	2
EEPROM Size	2K x 8
On Chip Program ROM Width	8
ROM Programmability	FLASH
Device Core	AVR
Length	14mm
Width	14mm
RoHS Status	ROHS3 Compliant

ATXMEGA128B3-ANR Product Details

ATXMEGA128B3-ANR Overview

In a 100-TQFP package, the MCU is available. 36 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8/16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. AVR® XMEGA® B3 series components make up this electrical component. 128KB 128K x 8 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number YES. 128kB is the memory size of the part. The base part number ATXMEGA128 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 32MHz. The device works in YES PWM channels. Located on the chip are 100 pins. The clock has 2 timers or counters on it.
